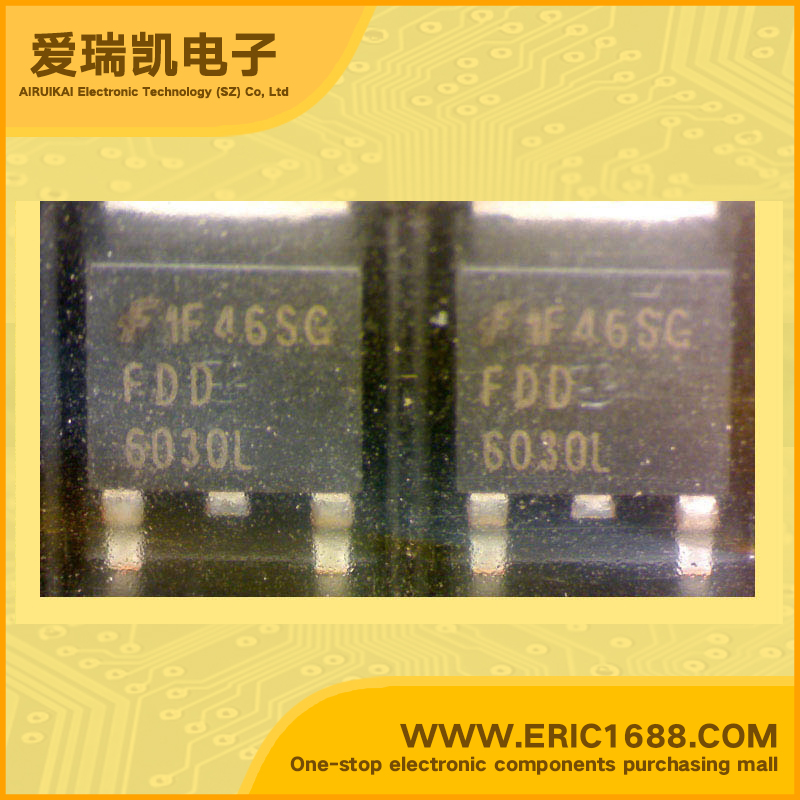

FDD6030L N沟道MOSFET 30V 50A TO-252/D-PAK marking/标记 FDD6030L 低导通电阻/超高速开关/2.5V驱动器
| 最大源漏极电压Vds Drain-Source Voltage | 30V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 20V |
| 最大漏极电流Id Drain Current | 50A |
| 源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance | 0.0136Ω/Ohm @1.2A,10V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | 1.2V |
| 耗散功率Pd Power Dissipation | 60W |
| Description & Applications | 150V N-Channel PowerTrench MOSFET General Description This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC • 4.7 A, 150 V. DS(ON)= 80 mΩ @ VGS = 10 V RDS(ON) = 90 mΩ @ VGS = 6 V • Low gate charge • Fast switching speed • High performance trench technology for extremely low RDS(ON) • High power and current handling capability. |
| 描述与应用 | 150V N-沟道PowerTrench MOSFET 概述 这N沟道MOSFET的设计 专门用于提高整体效率的DC / DC 转换器采用同步或常规 开关PWM控制器。 这些MOSFET具有更快的开关和更低 比其他具有可比性的MOSFET栅极电荷 RDS（ON）规格。 其结果是一个MOSFET，很容易和更安全的驾驶 （即使在非常高的频率），和DC / DC •低栅极电荷 •开关速度快 •高性能沟道技术极 低RDS（ON） •高功率和电流处理能力 |
| 规格书PDF |
