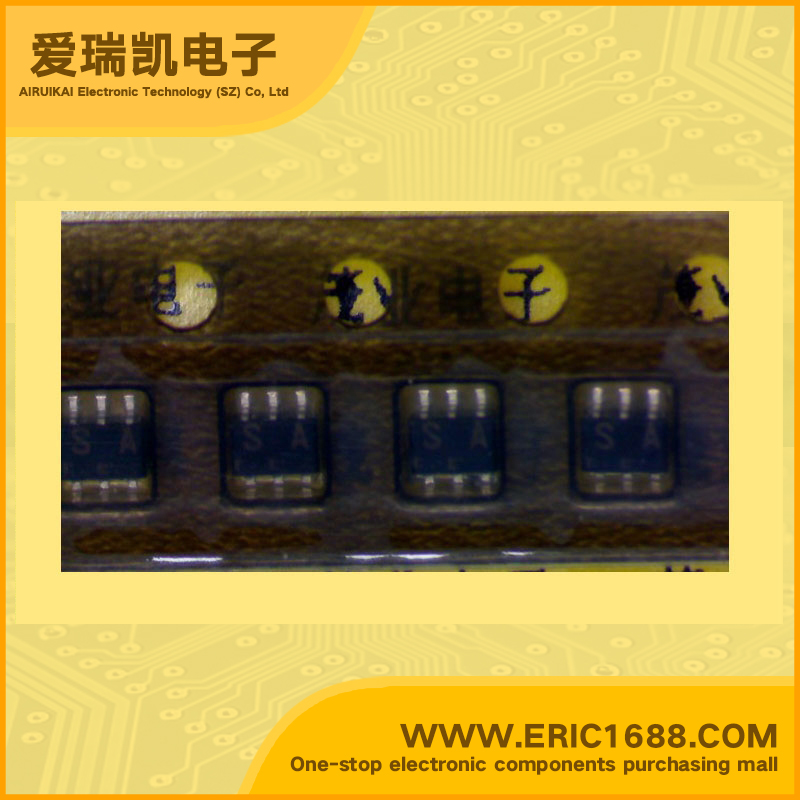

UPA675T 复合场效应管 16V 100mA/0.1A SOT-363/SC70-6 marking/标记 SA 高速开关
| 最大源漏极电压VdsDrain-Source Voltage | 16V |
| 最大栅源极电压Vgs(±)Gate-Source Voltage | 7V |
| 最大漏极电流IdDrain Current | 100mA/0.1A |
| 源漏极导通电阻RdsDrain-Source On-State Resistance | 12Ω@ VGS = 4V, ID = 10mA |
| 开启电压Vgs（th）Gate-Source Threshold Voltage | 0.5~1.1V |
| 耗散功率PdPower Dissipation | 200mW/0.2W |
| Description & Applications | N-CHANNEL MOS FIELD EFFECT TRANSISTOR FOR HIGH SPEED SWITCHING DESCRIPTION The μ PA675T is an N-channel vertical MOS FET. Because it can be driven by a voltage as low as 1.5 V and it is not necessary to consider a drive current, this FET is ideal as an actuator for low-current portable systems such as headphone stereos and video cameras. FEATURES • Two MOS FET circuits in package the same size as SC-70 • Automatic mounting supported • Gate can be driven by a 1.5 V power source • Because of its high input impedance, there’s no need to consider a drive current • Since bias resistance can be omitted, the number of components required can be reduced |
| 描述与应用 | N沟道MOS场效应晶体管 用于高速开关 说明 μPA675T是一个N沟道垂直MOS FET。因为它 可以由低至1.5 V的电压，这是不 必要考虑驱动电流，这FET是理想的作为 执行器的低电流的便携式系统，如耳机 音响和摄像机。 特点 •两个MOS FET的软件包电路SC-70相同的尺寸 •支持自动安装 •门可以由一个1.5 V电源 •由于其高输入阻抗，有没有必要考虑驱动电流 自偏压电阻可以省略，数量组件可以减少所需要 |
| 规格书PDF |
