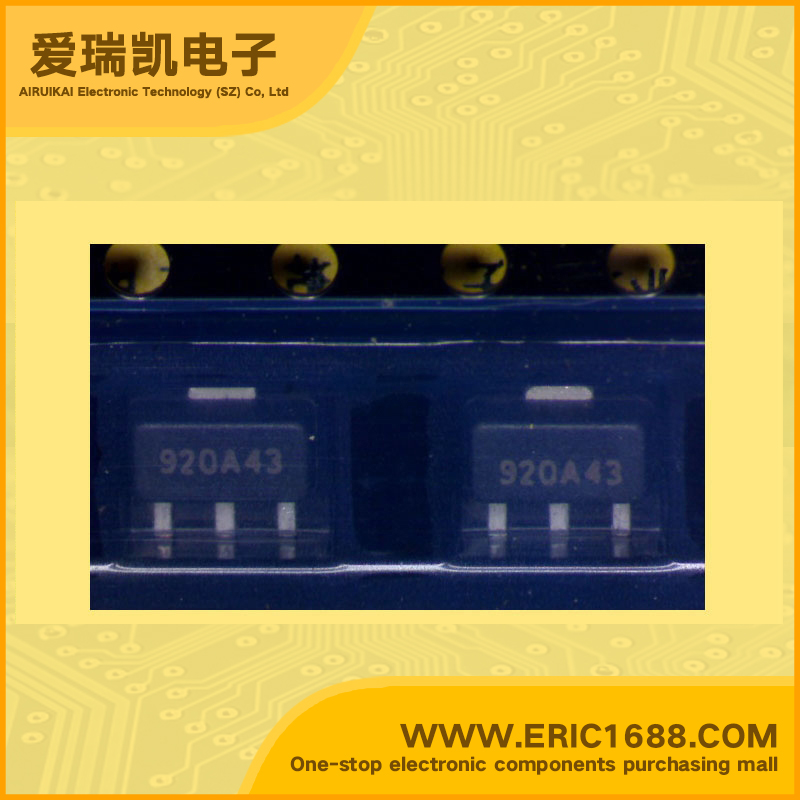

G920AT24U 电压调整器/稳压电源IC 3.3V 1.6V SOT-89 marking/标记 92043 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 6~25V |
| 输出电压VOUTVoltage - Output | 3.3V |
| 输出电流IoCurrent - Output | 10mA |
| 最大压降VDOVoltage - Dropout | 1.6V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | Low Quiescent Current Voltage Regulator;•Low current consumption (typically 4.5µA) •Output voltage accuracy ±2.5% •Drop-output voltage (typically) •2.5V @ 50mA loading •1.6V @10mA loading •Wide operating range (max 25V) •Internal over temperature protection •Excellent line regulation •Good load regulation |
| 描述与应用 | 低静态电流电压调节器;•低电流消耗（典型值为4.5μA） •输出电压精度±2.5％ •下拉输出电压（典型值） •2.5V@50MA负载 •1.6V@ 10mA输出负载 •宽工作电压范围（最大25V） •内部过温保护 •优异的行规 •良好的负载调节 |
| 规格书PDF |
