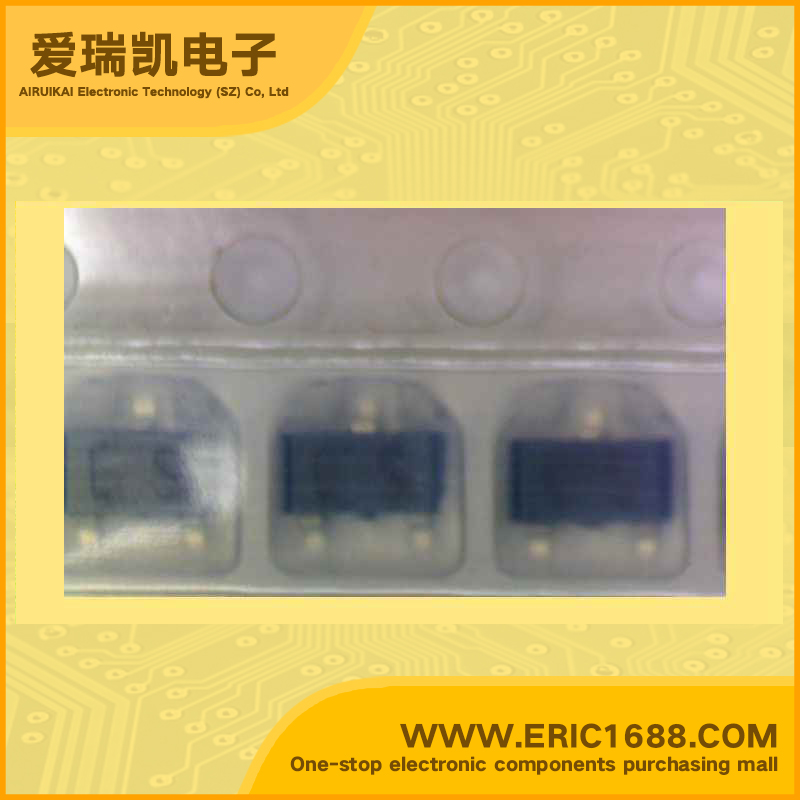

2SC5814 NPN三极管 60V 125mA/0.125A 200MHz 270~560 300mV/0.3V SOT-323/SC-70 marking/标记 ES 低频放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流ICCollector Current(IC) | 125mA/0.125A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 270~560 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | For Low Frequency Amplify Application Silicon NPN Epitaxial Type DESCRIPTION 2SC5814，2SC5815，2SC5816，2SC5817 is a super mini package silicon NPN epitaxial type transistor. It is designed for low frequency voltage amplify application. FEATURES ● Facilitates miniaturization and high-density mounting ● Excellent linearity of DC forward current gain ●Low collecter to emitter saturation voltage VCE(sat)=0.3V max (@IC=30mA,IB=1.5mA) APPLICATION For hybrid IC , small type machine low frequency voltage amplify application |
| 描述与应用 | 低频放大应用 硅NPN外延型 说明 2SC5814，2SC5815，2SC5816，2SC5817是一个超级迷你包 NPN硅外延型晶体管。它是专为低频 电压放大应用。 特点 ●促进小型化和高密度安装 ●优良的线性的直流正向电流增益 ●捕集器发射极饱和电压低 VCE（饱和）=0.3V最大（@ IC=30毫安，IB=1.5毫安） 应用 对于混合IC，小型机低频电压放大 应用 |
