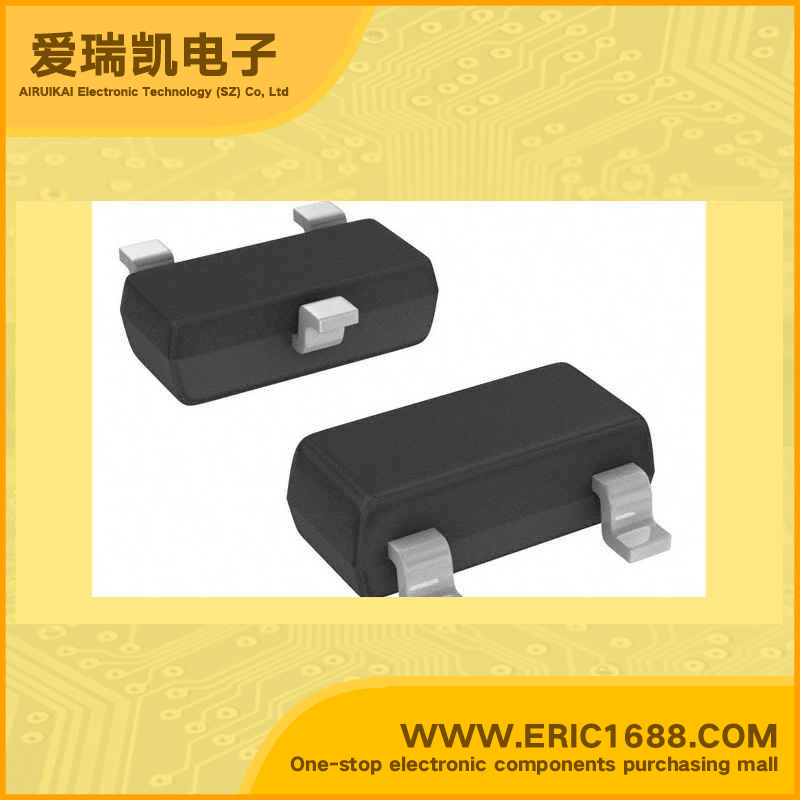

2SA1462 PNP三极管 -15V -50mA 1.8GHz 75~150 -90mV SOT-23/SC-59 marking/标记 Y34 高速开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −15V |
| 集电极连续输出电流ICCollector Current(IC) | -50mA |
| 截止频率fTTranstion Frequency(fT) | 1.8GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 75~150 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -90mV |
| 耗散功率PcPoWer Dissipation | 200mW/0.2W |
| Description & Applications | High speed switching PNP silicon epitaxial transistor mini mold high fT complementary to 2SC3735 |
| 描述与应用 | 高速开关PNP硅外延晶体管小型模具 高频 2SC3735互补 |
| 规格书PDF |
