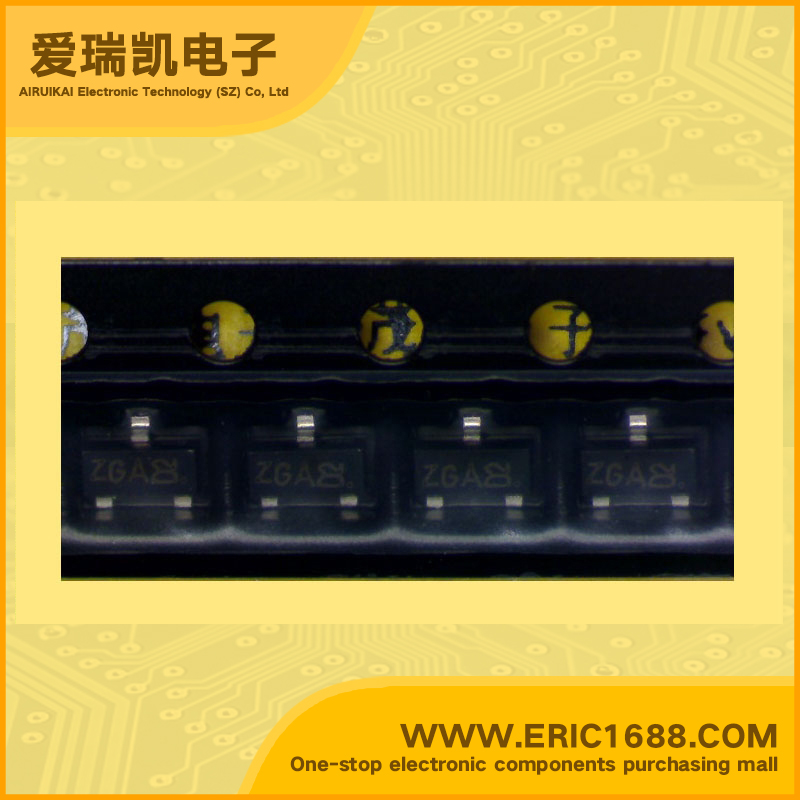

KN2222AS NPN三极管 75V 600mA/0.6a 300MHz 100~300 1.6V SOT-23/SC-59 marking/标记 ZGA 开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 75V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 600mA/0.6A |
| 截止频率fTTranstion Frequency(fT) | 300MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 1.6V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | EPITAXIAL PLANAR NPN TRANSISTOR GENERAL PURPOSE APPLICATION. Switching Transistor complement to KN2907AS Low leakage current: ICEX=10nA(max)@VCE=-60V，VEB=3V。 Low Saturation current: VCE=0.3V(max)@Ic=150mA，IB=15mA |
| 描述与应用 | 外延平面NPN晶体管 通用应用。 开关晶体管 对管KN2907AS 低漏电流 低饱和电流 |
| 规格书PDF |
