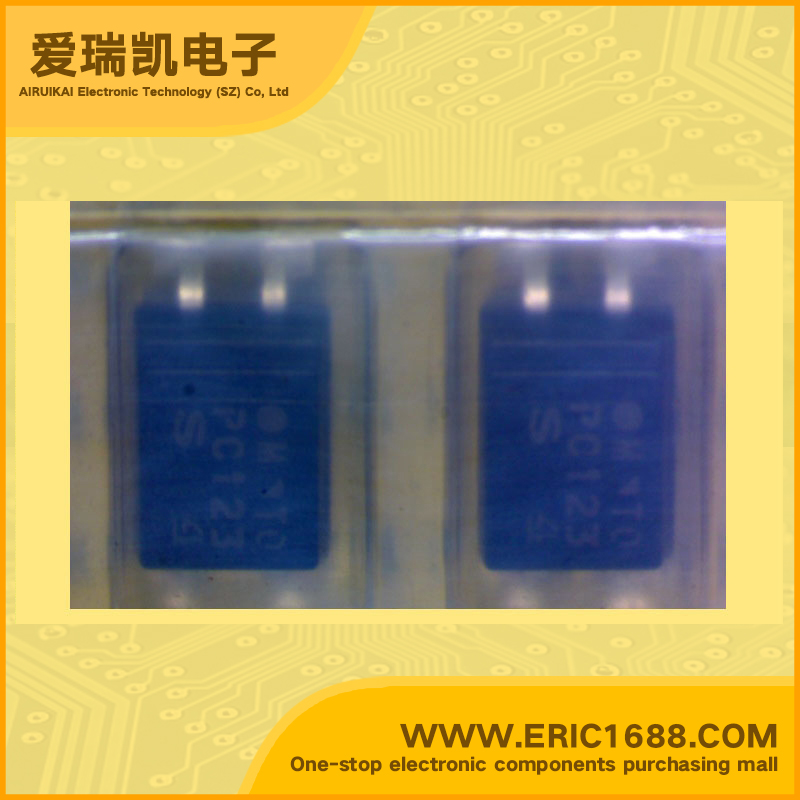

光电耦合器 晶体管，光电输出 PC123S 4532 marking/标记 PC123S
| 通道数Number of Channels | 1 |
| 输入类型Input Type | DC |
| 电压 - 隔离Voltage - Isolation | 5000Vrms |
| 电流传输比（最小值）Current Transfer Ratio (Min) | 50% @ 5mA |
| 电流传输比（最大值）Current Transfer Ratio (Max) | 400% @ 5mA |
| 电压 - 输出Voltage - Output | 70V |
| 电流 - 输出/通道Current - Output / Channel | 50mA |
| 电流 - DC 正向 (If)Current - DC Forward (If) | 10mA |
| Vce 饱和值（最大值）Vce Saturation (Max) | 0.2V |
| 输出类型Output Type | 晶体管 Transistor |
| Description & Applications | Features • DIP 4 pin Reinforced Insulation Type Photocoupler • 4-pin DIP package • Double transfer mold package (Ideal for Flow Soldering) • Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V) • Several CTR ranks available • Reinforced insulation type (Isolation distance : MIN. 0.4mm) • Long creepage distance type (wide lead-form type only : MIN. 8mm) • High isolation voltage between input and output (Viso(rms) : 5.0 kV) • Lead-free and RoHS directive compliant APPLICATIONS • I/O isolation for MCUs (Micro Controller Units) • Noise suppression in switching circuits • Signal transmission between circuits of different potentials and impedances • Over voltage detection |
| 描述与应用 | 特点 •DIP4针加强绝缘型光耦合器 •4脚DIP封装 •双压注模封装（非常适于波峰焊） •电流传输比（CTR：MIN50％在IF=5毫安，VCE=5V） •几个CTR行列 •加强绝缘型（隔离距离：最小0.4mm间距） •爬电距离长型（宽铅表单类型：最小0.8毫米） •高输入和输出之间的隔离电压（维索（RMS）：5.0千伏） •无铅免费兼容指令和RoHS 应用 •I / O隔离的MCU（微控制器单元） •开关电路的噪声抑制 •不同的潜能和阻抗的电路之间的信号传输 •过电压检测 |
