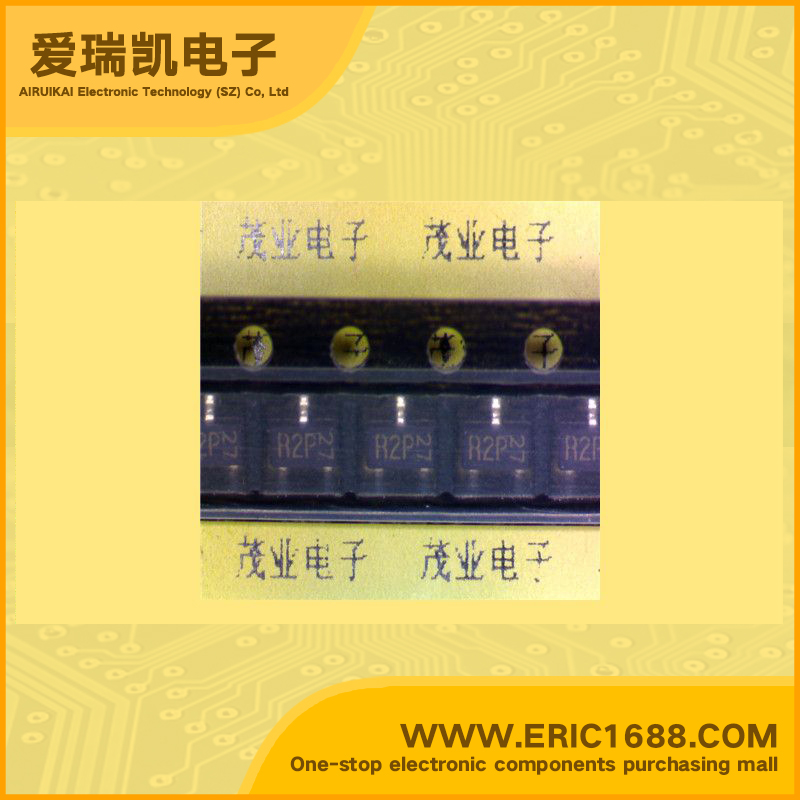

MMST5086 PNP三极管 -50V -50mA 40MHz 150~500 -300mV/-0.3V SOT-23/SMT3 marking/标记 R2P
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | -50mA |
| 截止频率fTTranstion Frequency(fT) | 40MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 150~500 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 350mW/0.35W |
| Description & Applications | |
| 描述与应用 |
