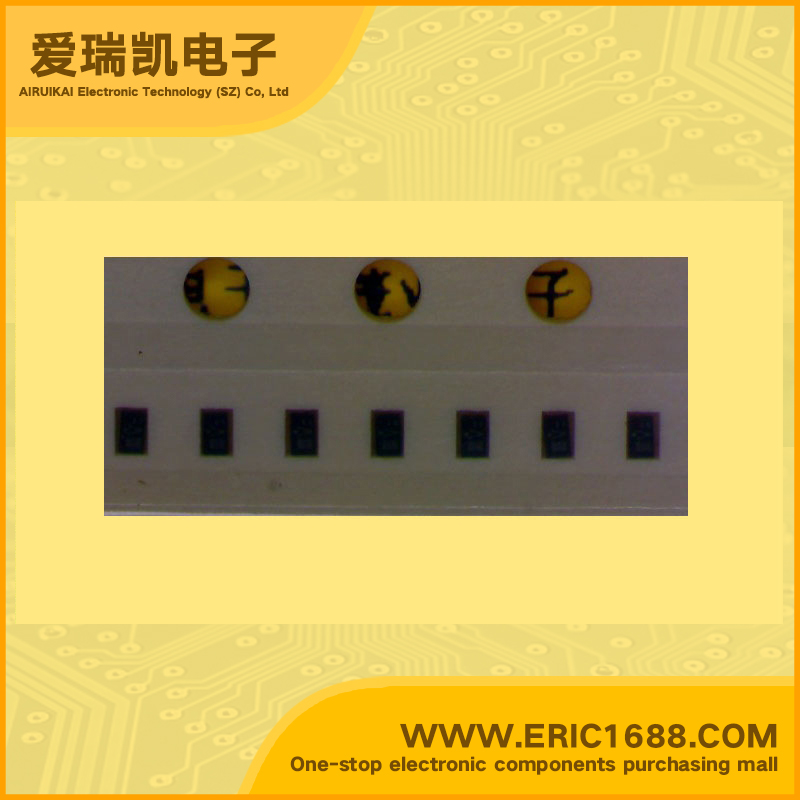

EC4A01TF-4-B-TR-H N沟道结型场效应管 20v 0.14~0.24mA E-CSP1008-4 marking/标记 V radio 设备和电话
| 最大源漏极电压VdsDrain-Source Voltage | 20v |
| 栅源极击穿电压V(BR)GSGate-Source Voltage | -20v |
| 漏极电流(Vgs=0V)IDSSDrain Current | 0.14~0.24ma |
| 关断电压Vgs(off)Gate-Source Cut-off Voltage | -0.2~-1.2v |
| 耗散功率PdPower Dissipation | 100mW/0.1W |
| Description & Applications | •N-Channel Silicon Junction FET Features • Ultrasmall (1006 size), thin (0.35mm) leadless package. • Especially suited for use in condenser microphone for audio equipments and telephones. • Excellent voltage characteristic. • Excellent transient characteristic. • Adoption of FBET process. |
| 描述与应用 | •N沟道硅结型场效应管 特点 •超小（1006尺寸），薄（0.35毫米）无铅封装。 特别适合用于电容式麦克风的音频设备和电话。 •优秀的电压特性。 •出色的瞬态特性。 •通过过程FBET。 •优秀的电压特性。 •出色的瞬态特性。 |
| 规格书PDF |
