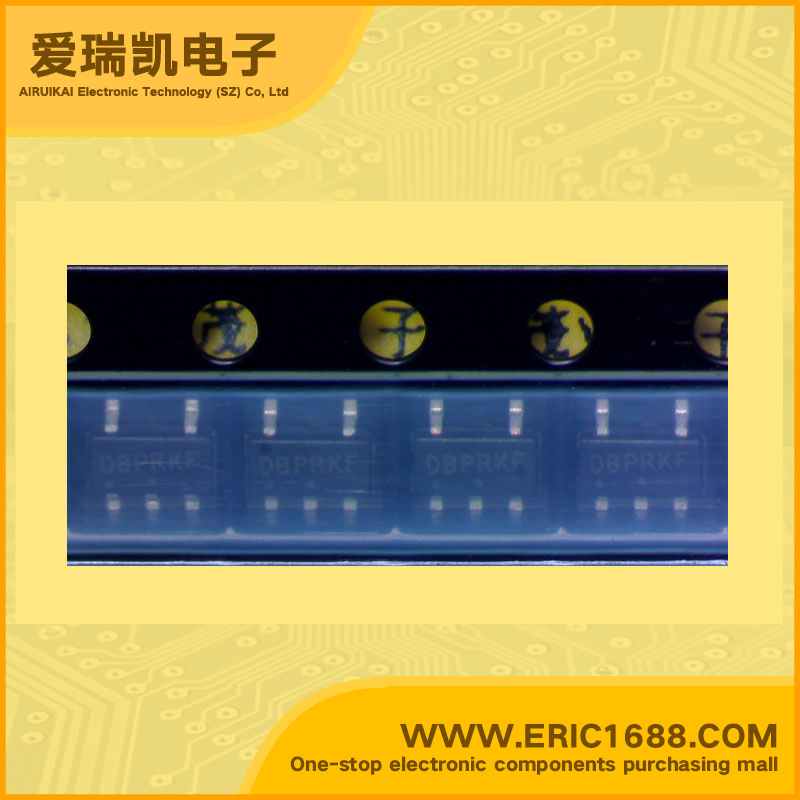

NCP1521ASNT1G DC/DC降压转换电源IC 0.9~3.3V SOT-153/TSOP-5/SOT23-5 marking/标记 DBP 可调输出电压降压转换器

热销商品

产品描述
控制方式MODEPWM
输入电压VINInput Voltage2.7~5.5V
输出电压VOUTOutput Voltage0.9~3.3V
输出电流IOUTOutput Current600ma
震荡频率FOSCOscillation Frequency1.5mhz
内置FETBuilt-in FET
Description & Applications1.5 MHz, 600 mA,High-Efficiency, Low Quiescent Current, Adjustable Output Voltage Step-Down Converter • 95.3% of Efficiency for 3.3 V Output and 4.2 V Input and 80 mA Load-Current • Sources up to 600 mA • 1.5 MHz Switching Frequency • Adjustable Output Voltage from 0.9 V to 3.3 V • 30 A Quiescent Current • Synchronous Rectification for Higher Efficiency • 2.7 V to 5.5 V Input Voltage Range • Thermal Limit Protection • Shutdown Current Consumption of 0.3 A • Short Circuit Protection • This is a Pb-Free Device • Cellular Phones, Smart Phones and PDAs • Digital Still/Video Cameras • MP3 Players and Portable Audio Systems • Wireless and DSL Modems • Portable Equipment • USB Powered Devices
描述与应用1.5兆赫,600 mA,高效率,低静态电流, 可调输出电压降压转换器 •3.3 V输出和4.2 V输入和80 mA负载电流效率95.3% •高达600 mA的来源 •1.5 MHz的开关频率 可调输出电压从0.9 V到3.3 V •30的静态电流 •更高的效率同步整流 •2.7 V至5.5 V输入电压范围 •热限制保护 •关机电流消耗为0.3? •短路保护? •这是一个Pb-Free设备 •蜂窝电话,智能电话和PDA •数码相机/数码摄像机 •MP3播放器和便携式音频系统 •无线和DSL调制解调器 •便携式设备 •USB供电设备
规格书PDF
