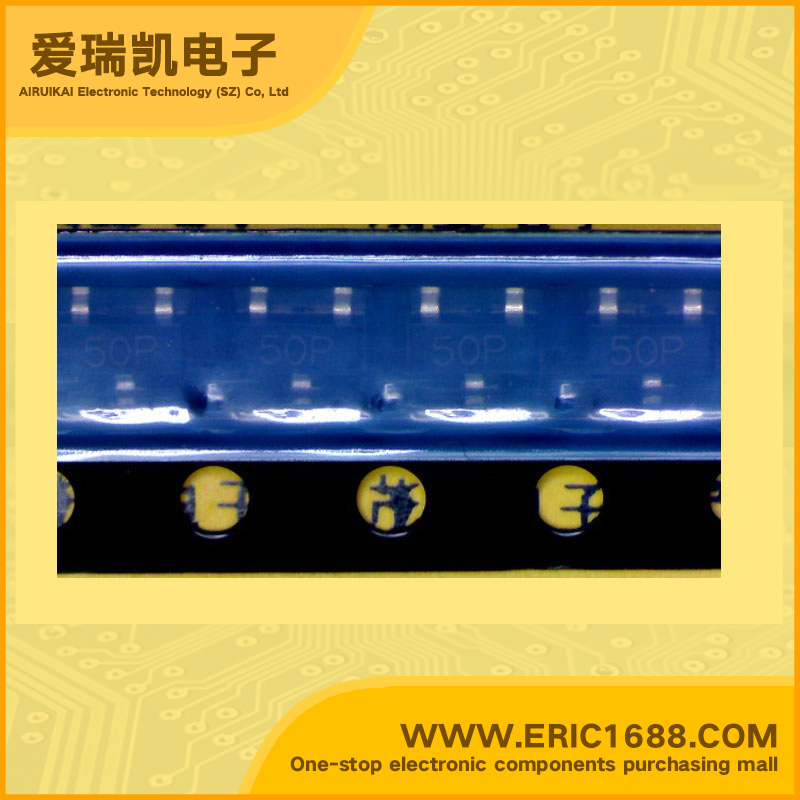

ZRC500F03TA 电压基准电源IC 5.0V SOT-23 marking/标记 50P 无稳定电容 测试设备
| 参考类型Reference Type | 旁路，精度 Shunt, Precision |
| 输出电压VoVoltage - Output | 5.0V |
| 误差Tolerance | ±1% |
| 温度系数Temperature Coefficient | 90ppm/°C |
| 输入电压Voltage - Input | |
| 阴极电流Current - Cathode | 25µA |
| 输出电流IOUTCurrent - Output | 5mA |
| Description & Applications | FEATURES • PRECISION 5.0 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE • Small outline SOT23 packages • No stabilizing capacitor required • Low knee current, 19µA typical • Typical TC 30ppm/°C • Typical slope resistance 0.4Ω • 1% tolerance • Industrial temperature range • Operating current 25µA to 5mA • Transient response, stable in less than 10µs • Green molding compound (No Br, Sb) Applications • Battery powered and portable equipment • Instrumentation • Test equipment • Metering and measurement systems |
| 描述与应用 | 特点 •精密5.0伏低膝电流电压参考 •小外形SOT23封装 •无稳定电容 •低膝盖电流19μA典型 •典型的TC为30ppm/°C •典型斜率电阻0.4Ω •1％的容差 •工业温度范围 •工作电流25μA到5mA •瞬态响应，稳定在不超过10μs •绿色模塑化合物（无溴，锑） 应用 •电池供电和便携式设备 •仪表 •测试设备 •计量和测量系统 |
