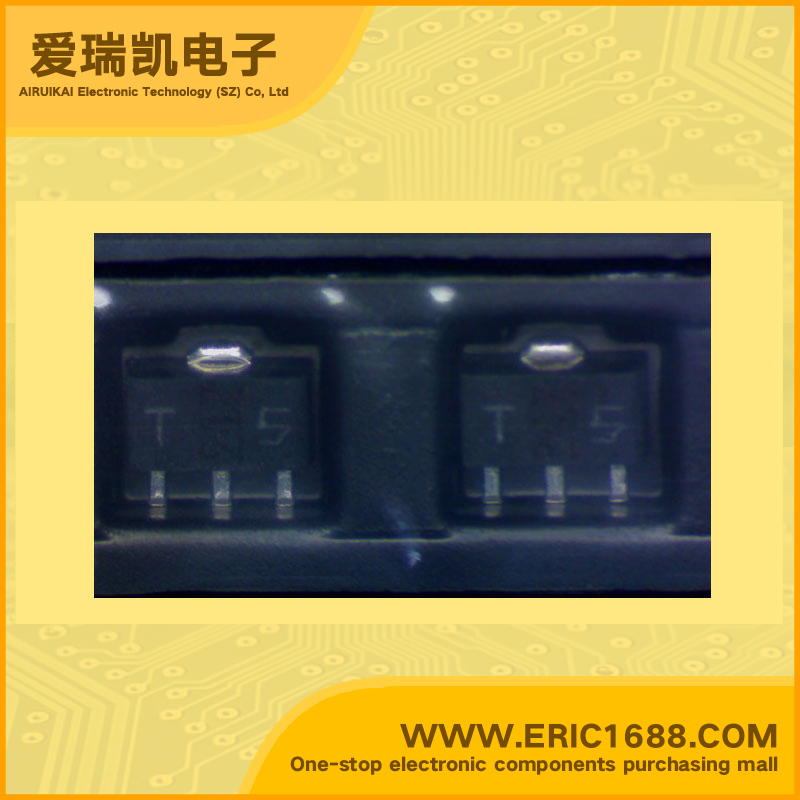

MT3S22P NPN三极管 12V 80mA 65GHz~85GHz 100~250 SOT-89/PW-Mini marking/标记 T5 UHF频段振荡器和放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 12V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 6V |
| 集电极连续输出电流ICCollector Current(IC) | 80mA |
| 截止频率fTTranstion Frequency(fT) | 65GHz~85GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~250 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | |
| Description & Applications | VHF-UHF Low-Noise, Low-Distortion Amplifier Applications Low Noise Figure: NF=1.5dB(Typ.) (@f=1GHz) • High Gain: |S21e| 2 =10.5dB(Typ.) (@f=1GHz) |
| 描述与应用 | VHF-UHF低噪声，低失真放大器的应用 低噪声系数：NF=1.5分贝（Type.）（F =1千兆赫） •高增益：| S21e2 =10.5分贝（典型值）（@ F =1GHz的） |
| 规格书PDF |
