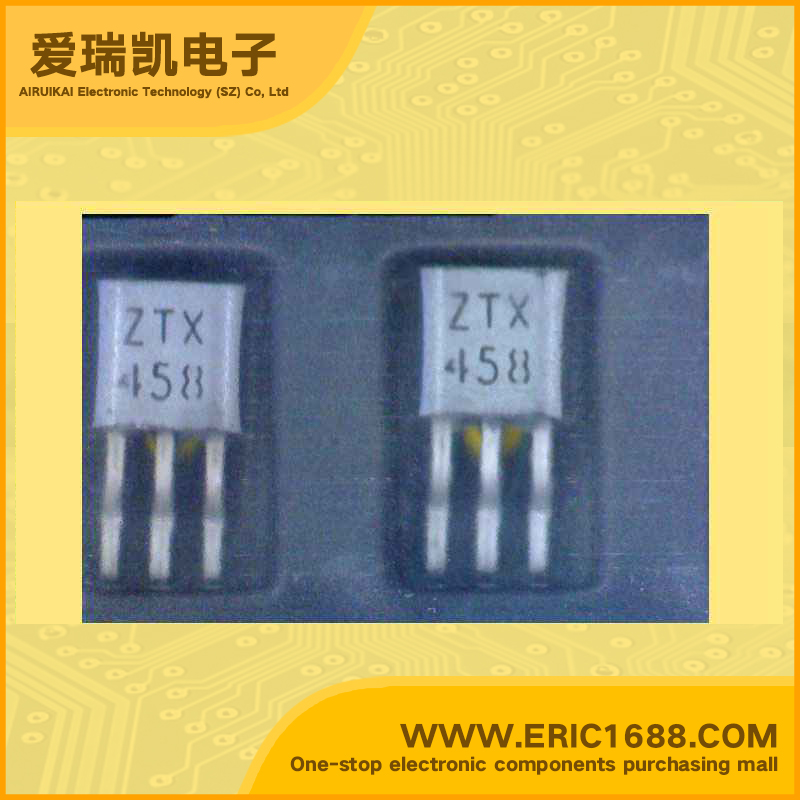

ZTX458M1TA NPN三极管 400V 300mA/0.3A 50MHz 200 350mV/0.35V TO-92 marking/标记 高电压晶体管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 400V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 400V |
| 集电极连续输出电流ICCollector Current(IC) | 300mA/0.3A |
| 截止频率fTTranstion Frequency(fT) | 50MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 200 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 350mV/0.35V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | High voltage transistor * 400 Volt VCEO * 0.5 Amp continuous current * Ptot= 1 Watt |
| 描述与应用 | 高电压晶体管 *400伏VCEO *0.5安培连续电流 * P合计=1瓦 |
| 规格书PDF |
