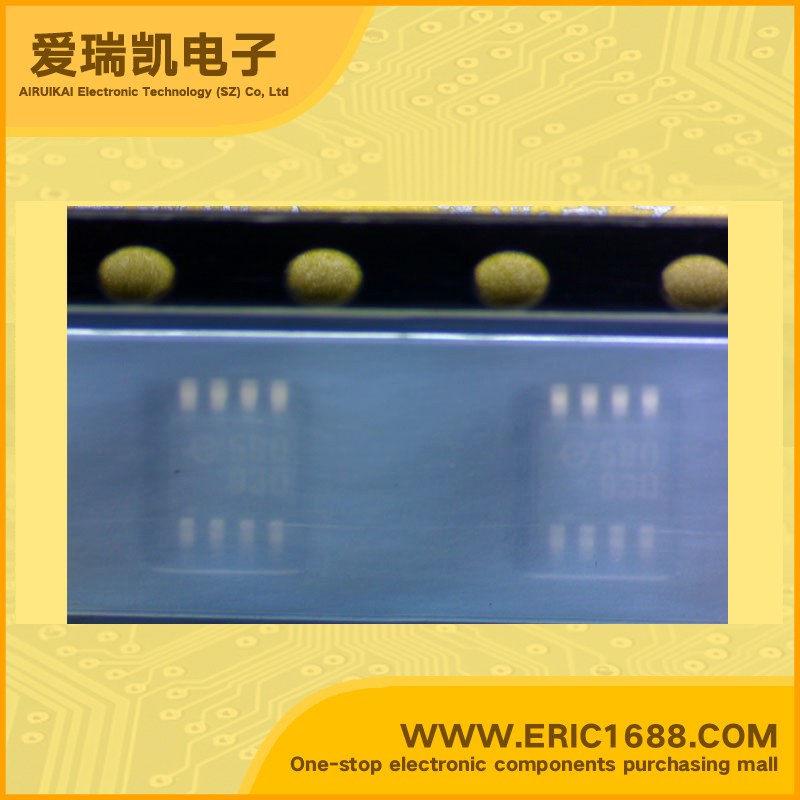

XC9210B093KR DC/DC降压转换电源IC 0.9~6V MSOP-8A marking/标记 930 同步降压型DC/DC控制器IC，驱动晶体管内置
| 控制方式MODE | PWM/PFM |
| 输入电压VINInput Voltage | 2~10V |
| 输出电压VOUTOutput Voltage | 0.9~6V |
| 输出电流IOUTOutput Current | 2A |
| 震荡频率FOSCOscillation Frequency | 300KHZ |
| 内置FETBuilt-in FET | |
| Description & Applications | Synchronous Step-Down DC / DC Controller ICs • P-Channel Driver Transistor Built-In • Output Voltage Range : 0.9V ~ 4.0V • Oscillation Frequency : 300kHz, 600kHz, 1.2MHz • Maximum Duty Ratio : 100% • Ceramic Capacitor Compatible |
| 描述与应用 | 同步降压型DC/ DC控制器IC •P沟道驱动晶体管内置 •输出电压范围：0.9V〜4.0V •振荡频率为300kHz，600kHz的1.2MHz的 •最大占空比：100％ •兼容陶瓷电容 |
| 规格书PDF |
