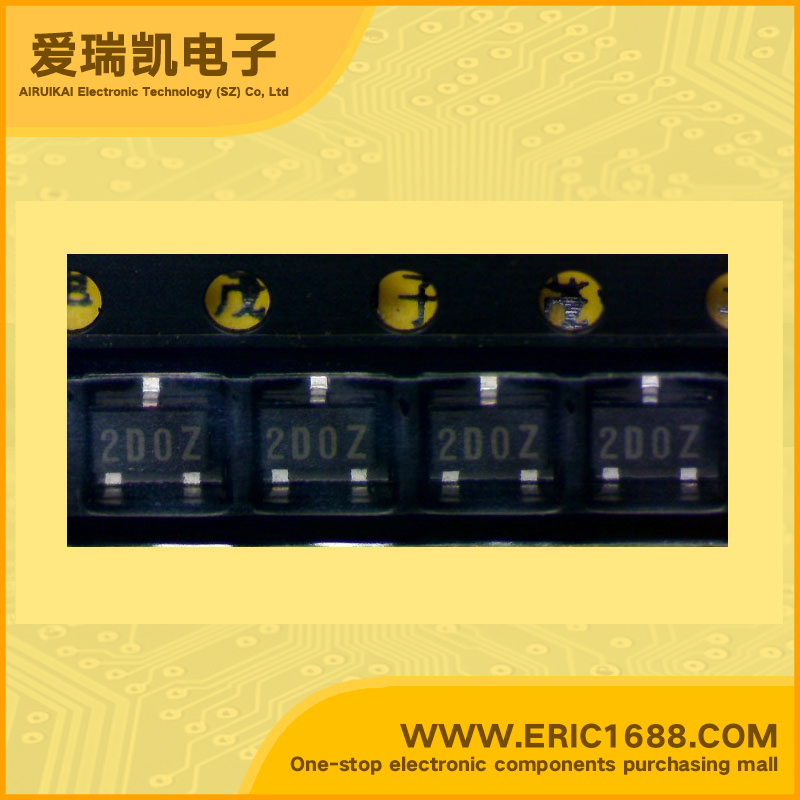

XC62FP2302MR LDO电压调整器/稳压电源IC 2.3V SOT-23 marking/标记 2D 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input 12V
输出电压VOUTVoltage - Output2.3V
输出电流IoCurrent - Output
最大压降VDOVoltage - Dropout
带使能脚EN/CE(ON/OFF功能)With Enable Pin无 No
最大耗散功率PdPower dissipation150mW/0.15W
Description & Applications•Positive Voltage Regulators •Maximum Output Current: 250mA (within max. power dissipation, VOUT = 5.0V) •Output Voltage Range : 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products) •Highly Accurate: Output voltage ±2% (±1% for semi-custom products) •Low Power Consumption : Typ. 2.0µA @ VOUT=5.0V •Output Voltage Temperature Characteristics : Typ. ±100ppm/°C •Input Stability : Typ. 0.2%/V •Small Input-Output Differential : IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential
描述与应用•正电压稳压器 •最大输出电流:250mA (在最大功耗,VOUT=5.0V) •输出电压范围 :2.0V〜6.0V,0.1V增量 (1.5V〜1.9V定制产品) •高精度:±2%的输出电压 (±1%的半定制产品) •低功耗 类型: 2.0μA@ VOUT= 5.0V •输出电压的温度特性 类型:温度系数±100ppm/°C •输入稳定性:类型。 0.2%/ V •小输入输出差分 :@ I OUT=100mA时VOUT= 5.0V与0.12V的差分 •CMOS低功耗
规格书PDF
