产品描述
电容值Capacitance47000pF
电压Voltage50V
电流Current5A
DC电阻(DCR)DC Resistance (DCR)150mΩ

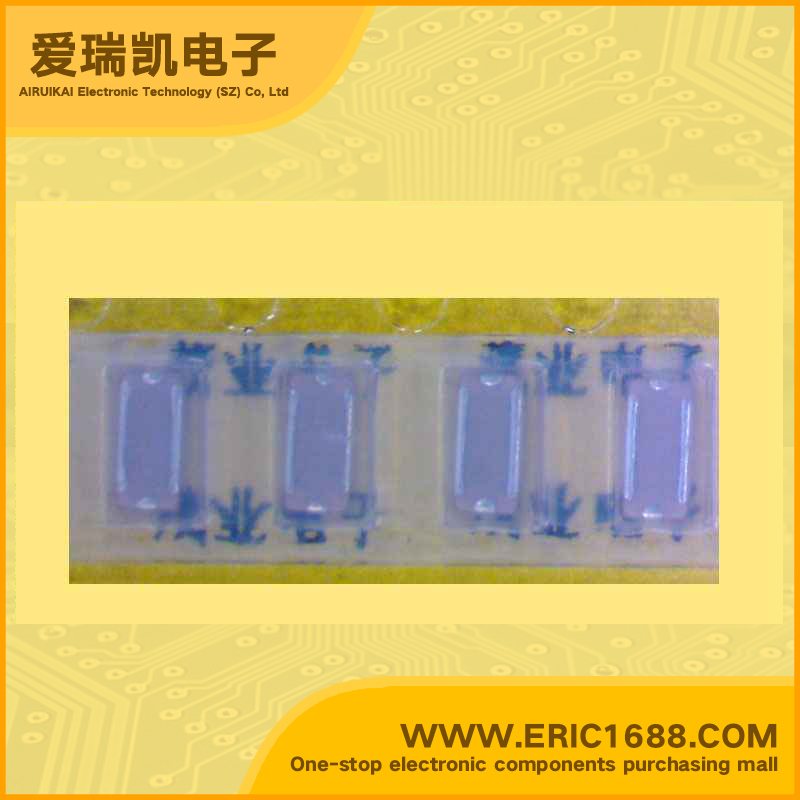

Description & ApplicationsHigh Current Feedthru Capacitors W2H/W3H Series GENERAL DESCRIPTION High current feedthru capacitors are designed as a broad-band EMI filter that is specially designed to have high current handling capability. These W2H/W3H feedthru filters can actually replace discrete L/C filter networks. FEATURES • Low parallel inductance provides significant noise reduction in circuits with operating frequencies up to 5GHz • Broad frequency response with high attenuation • High rated current – up to 2A for 0805 and up to 5A for 0612 • Small size – 0805 and 0612 case size • Reeling in accordance with EIA-481 MECHANICAL CHARACTERISTICS • Available in EIA 0805 and 0612 cases • Plated Tin over Nickel Barrier • Packaged in Tape & Reel TYPICAL APPLICATIONS • High current power (Vcc) lines • PA decoupling • DC:DC converters • Regulators • Power supervisory circuits
描述与应用高电流馈通电容器 W2H/W3H系列 概述 高电流馈通电容器被设计成宽频带的电磁干扰滤波器,特别设计,以具有高的电流处理能力。这些W2H/W3H馈通滤波器实际上可以取代离散L / C滤波网络。 特点 •低的并联电感提供显着的降噪电路工作频率高达5GHz •宽广的频率响应,高衰减 •高额定电流 - 高达2A的0805和06125A •体积小 - 0805和0612外壳尺寸 •按照EIA-481缫丝 机械特性 •可用在EIA0805和0612箱子的 •镍阻挡层镀锡 •在磁带和卷轴包装 典型应用 •高电流的电源线​​(VCC) •PA脱钩 •DC:DC转换器 •稳压器 •电源监控电路
