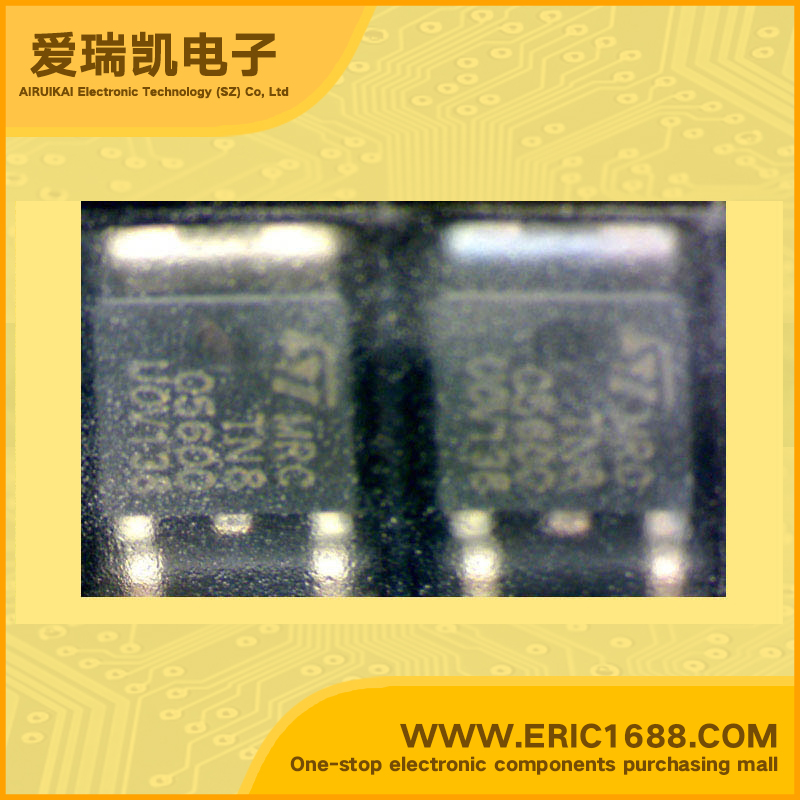

单向可控硅 TN805-600B-TR 0.8V 5mA SOT-252 marking/标记 TN805600
| 反向重复峰值电压VRRM/断态重复峰值电压VDRMRepetitive peak reverse voltage/Repetitive peak off-state voltage | 600V-1000V |
| 通态平均电流IT(AV)Average on-state current | 5A |
| 通态最大电流IT(RMS)RMS on-state current | 8A |
| 栅极触发电压VGTGate trigger voltage | 0.8V |
| 栅极触发电流IGTGate trigger current | 200μA |
| 保持电流IHHolding current | 5mA |
| 峰值通态电压VTMOn-state voltage | 1.6V |
| 重复峰值断态电流IDRMRepetitive peak off-state current | 5μA |
| 浪涌电流ITSM(50Hz、60Hz)Current - Non Rep. Surge 50, 60Hz (Itsm) | 73A |
| Description & Applications | THYRISTOR(Surface Mount Device/Non-isolated) overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharg Available in through-hole or surface-mount packages, they provide an optimized performance in a limited space area |
| 描述与应用 | 晶闸管（表面贴装设备/非隔离） 过压电路保护，在电动工具和厨房辅助电机控制电路，浪涌电流限制电路，电容放电 可在通孔或表面贴装封装，在有限的空间区域他们提供了一个优化的性能 |
| 规格书PDF |
