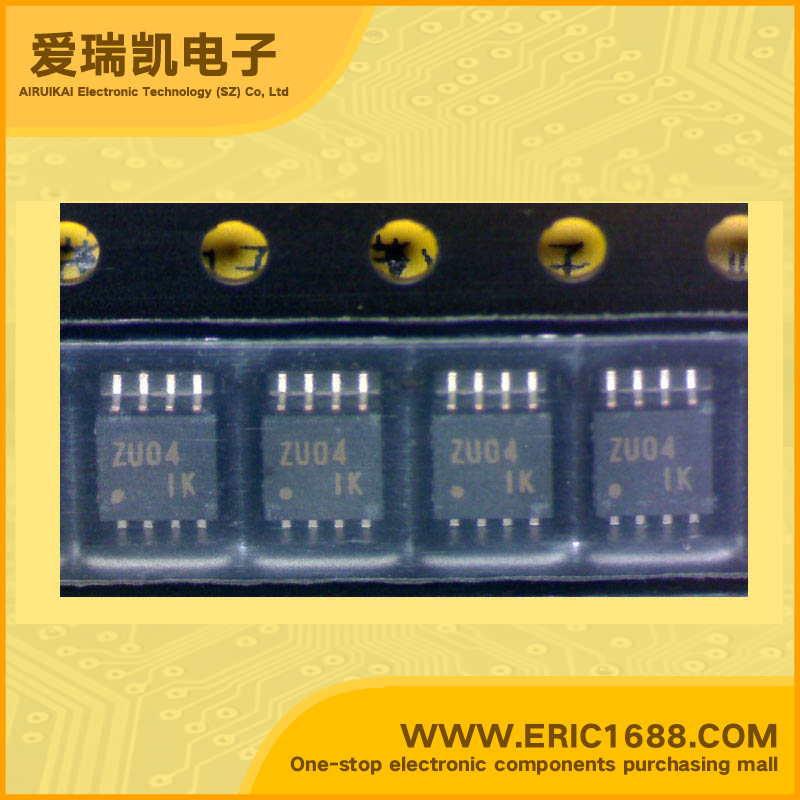

集成电路IC 反相器 TC7WZU04FU SM8 marking/标记 ZU04
| 逻辑类型Logic Type | 反相器 Inverter |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1µA |
| 输出高，低电平电流Current - Output High, Low | -16mA,16mA |
| 低逻辑电平Logic Level - Low | 0.15v~0.2v |
| 高逻辑电平Logic Level - High | 0.8v~0.85v |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3ns @ 3.3V，30pF |
| Description & Applications | Triple Inverter (Un-Buffer) ;• High output drive: ±16 mA (min) at VCC = 4.5 V • Low quiescent power: ICC < 1μA (max.) at VCC = 5.5 V, Ta=25℃ • Operation voltage range: VCC (opr) = 1.65~5.5 V • 5.5-V tolerant inputs |
| 描述与应用 | 三重逆变器（非缓冲区）;•高输出驱动：±16 mA（分钟）在VCC =4.5 V •低静态功耗：ICC<1μA（最大值） 在VCC =5.5 V，大= 25℃ •工作电压范围：VCC（OPR） =1.65〜5.5 V •5.5-V宽容输入 |
| 规格书PDF |
