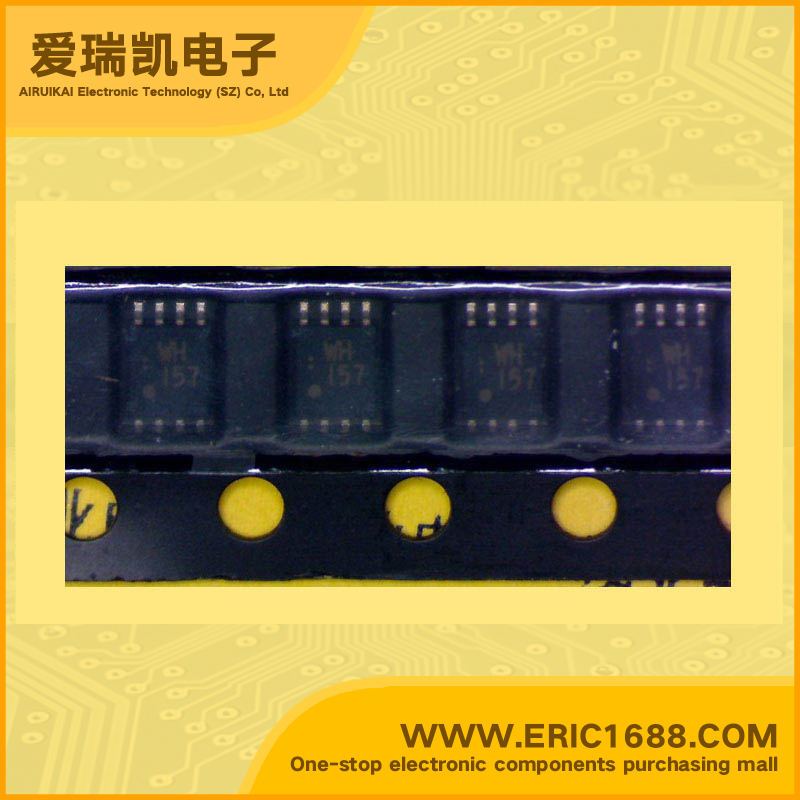

TC7WH157FK 解码器、多路复用器、信号开关 TSSOP-8 标记WH157
逻辑类型Logic Type | 多路复用器 Multiplexer |
电路数Number of Circuits | 4 x 2:1 |
输入数Number of Inputs | 1 |
电源电压VccVoltage - Supply | 8mA,8mA |
静态电流IqCurrent - Quiescent (Max) | 单电源 Single Supply |
输出高,低电平电流Current - Output High, Low | 2 V ~ 5.5 V |
低逻辑电平Logic Level - Low | The TC7WH157 is an advanced high speed CMOS QUAD 2-CHANNEL MULTIPLEXER fanrocated with silicon gate and double-layer metal wiring C2MOS technology.It achieve the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dossopation.This device consist of four 2-input digital multiplexer with common select and stobe inputs.When the STROBE input is held "H" level,selection of data is inhibited and all the outputs become "L"level.The SELECT decoding determines whether the A or B inputs get rputed to their corresponding Y outputs,ALL input are equipped with protection circuits against static aischatge or transient excess voltage. High Speed Low Power Dissipation High Noise Immunity Output Drive Capability Symmetrical Output Impedance Balanced Propagation Delays Wide Operating Voltage Range Pin and Function Compatible with 74F157 |
高逻辑电平Logic Level - High | TC7WH157是一种先进的高速CMOS四2通道复用器,利用硅栅和双层金属的接线C2MOS技术制造。它实现类似等效双极肖特基TTL的高速操作,同时保持CMOS的低功耗。本设备由四2输入数字多路复用组成,有共同选择和选通输入。当选通输入为“H”级,选择数据被抑制,所有输出成为“L”级。选择解码决定是否得到A或B输入其对应的Y输出。所有输入都配有保护电路防止的静态电压或瞬态过电压。 高速 低功耗 高抗干扰 输出驱动能力 对称的输出阻抗 平衡传输延时 宽工作电压范围 同74F157引脚和功能兼容 |
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL | |
Description & Applications | |
描述与应用 |
规格书PDF |
