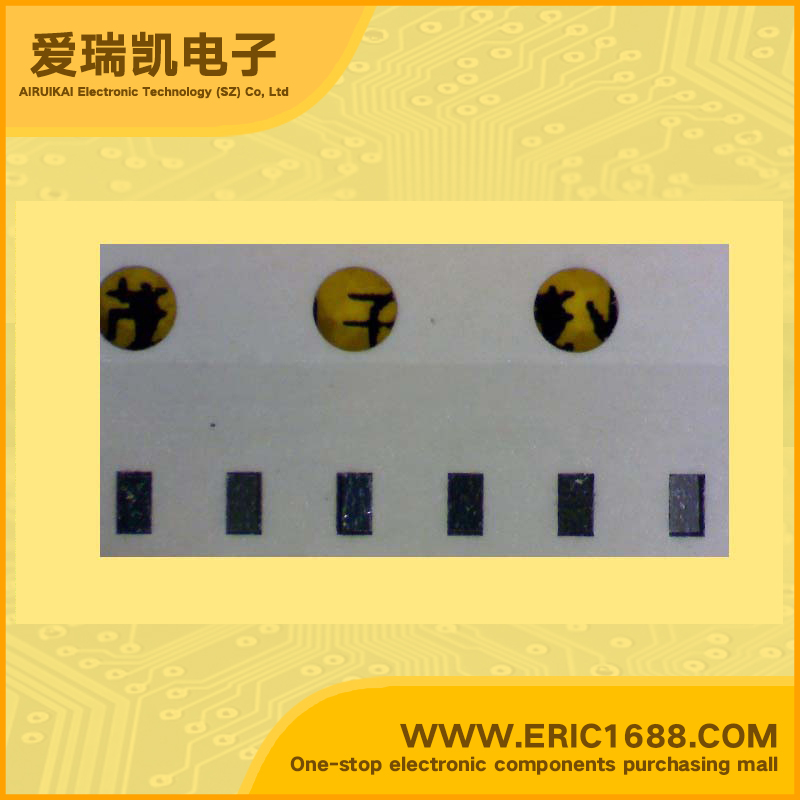

SP0501BACT 瞬态抑制二极管TVS/ESD ±5.9V 0402 标记
| 极性Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | ±5.9V |
| 反向击穿电压VBRBreakdown Voltage | |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | TVS Avalanche Diode in a Chip Scale Package；Features • TVS Avalanche Diode in a Chip Scale Package • Single channel suppressor in an EIA 0402 device size • ESD Capability IEC 61000-4-2, Direct Discharge .................................30kV (Level 4) IEC 61000-4-2, Air Discharge ......................................30kV (Level 4) MIL STD 883D (Method 3015.7).................................................30kV • Signal line protection for applications up to 5VDC • Fast response time .........................................................................< 1ns • Low input capacitance .........................................................30pF Typical • Low clamp voltage (8kV test) ................................................13V Typical • Low input leakage ....................................................1nA @ 3.3V Typical • Operating temperature range............................................-40°C to 85°C Applications • Cell phone handsets • Personal Digital Assistants (PDA) • Portable handheld equipment (Laptop, Palmtop computers) • Computer port, keyboard (USB1.1) • Set-Top Box (Audio and Video ports) • PCMCIA cards |
| 描述与应用 | TVS雪崩二极管芯片级封装;特点 •在芯片级封装的TVS雪崩二极管•在EIA0402器件尺寸的单信道抑制 •ESD能力 IEC61000-4-2，直接排放.................................30KV（4级） IEC61000-4-2，空气放电......................................30KV（级别4） MIL STD883D方法3015.7........................................... ......30kV的 •信号线路保护的应用5VDC •快速响应时间.............................................. ........................... <1ns的 •低输入电容.............................................. ...........30pF的典型 •低钳位电压（8kV的测试）.......................................... ......13V典型 •低输入漏.............................................. ......1nA@3.3V典型 •工作温度范围............................................-40 °C至85°C 应用 •手机手机 •个人数字助理（PDA） •便携式手持设备（笔记本电脑，掌上电脑） •计算机端口（USB1.1），键盘 •机顶盒（音频和视频端口） •PCMCIA卡 |
