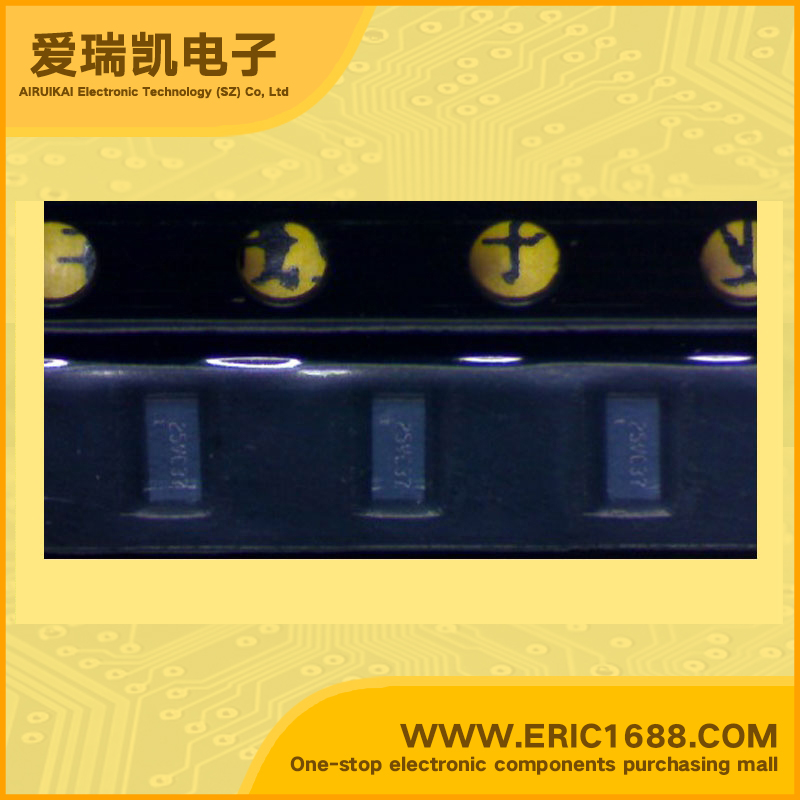

SN74LVC2G157YEAR 解码器、多路复用器、信号开关 8-DSBGA/8-WCSP/8-XFBGA 标记C37

热销商品

产品描述
逻辑类型Logic Type数据选择器/多路复用器 Multiplexer
电路数Number of Circuits1 x 2:1
输入数Number of Inputs1
电源电压VccVoltage - Supply32mA,32mA
静态电流IqCurrent - Quiescent (Max)单电源 Single Supply
输出高,低电平电流Current - Output High, Low1.65 V ~ 5.5 V
低逻辑电平Logic Level - LowThis single 2-line to 1-line data selector/multiplexer is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC2G157 features a common strobe (G) input. When the strobe is high, Y is low and Y is high.When the strobe is low, a single bit is selected from one of two sources and is routed to the outputs. The device provides true and complementary data.NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down. Available in the Texas Instruments NanoFree™ Packages Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 6 ns at 3.3 V Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V Ioff Supports Partial-Power-Down Mode Operation Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
高逻辑电平Logic Level - High这个单2线1线数据选择器/多路复用器器设计用于1.65-V到5.5 V的VCC操作。SN74LVC2G157拥有一个共同的选通信号(G)输入。当选通信号高,Y是低和Y是高。当选通信号为低电平时,从两个来源之一选择一个单个位,被路由到输出​​。该器件提供真正的和互补的数据。NanoFreeTM包装技术是IC包装概念的重大突破,使用冲模作为封装。这个装置是完全指定的部分断电应用程序使用IOFF。当断电时,IOFF电路关闭输出,防止破坏回流电流通过设备。 德州仪器NanoFree™软件包 支持5-V VCC操作 接受输入电压到5.5 V 在3.3 V时,最大TPD为6 ns 低功耗,10μA最大ICC ±24 mA输出驱动,在3.3 V时 IOFF支持部分断电模式操作 闭锁性能超过100 mA每JESD 78,II类
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL
Description & Applications
描述与应用
规格书PDF
相关型号列表
