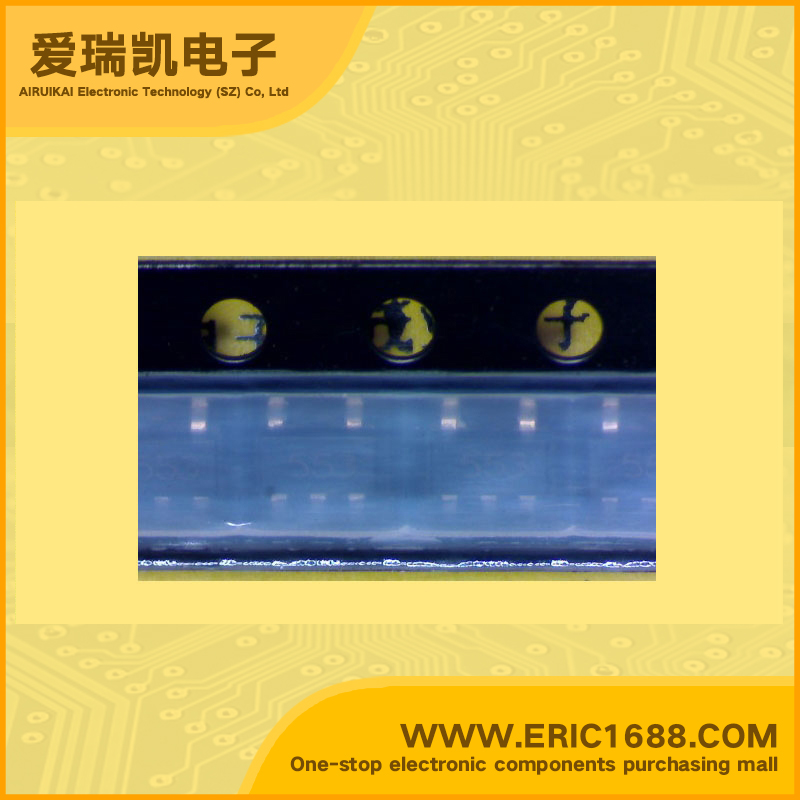

SC553ISKTR LDO电压调整器/稳压电源IC 1.25~6V 150mV/0.15V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 553 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | -0.6~7V |
| 输出电压VOUTVoltage - Output | 1.25~6V |
| 输出电流IoCurrent - Output | 150mA/0.15A |
| 最大压降VDOVoltage - Dropout | 150mV/0.15V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | 150mA Ultra Low Dropout Regulator with Adjustable Output ;•5205 compatible pinout •2% output accuracy guaranteed over line, load and temperature •Guaranteed 150 mA output current •Very small external components - designed to work with ceramic capacitors • Output adjustable from 1.25V to 6V •Very low supply current • Thermal overload protection •Reverse battery protection •Low power shutdown • Full industrial temperature range •Surface mount packaging (5 pin SOT-23) |
| 描述与应用 | 150mA的超低压差稳压器具有可调节输出 ;•5205兼容接脚分布 •2％的输出精度保证在线路，负载和温度 •保证150 mA的输出电流 •非常小的外部组件 - 设计工作 与陶瓷电容器 •从1.25V至6V输出可调 •极低的电源电流 •热过载保护 •反向电池保护 •低功耗关断 •全工业温度范围 •表面贴装封装（5引脚SOT-23） |
| 规格书PDF |
