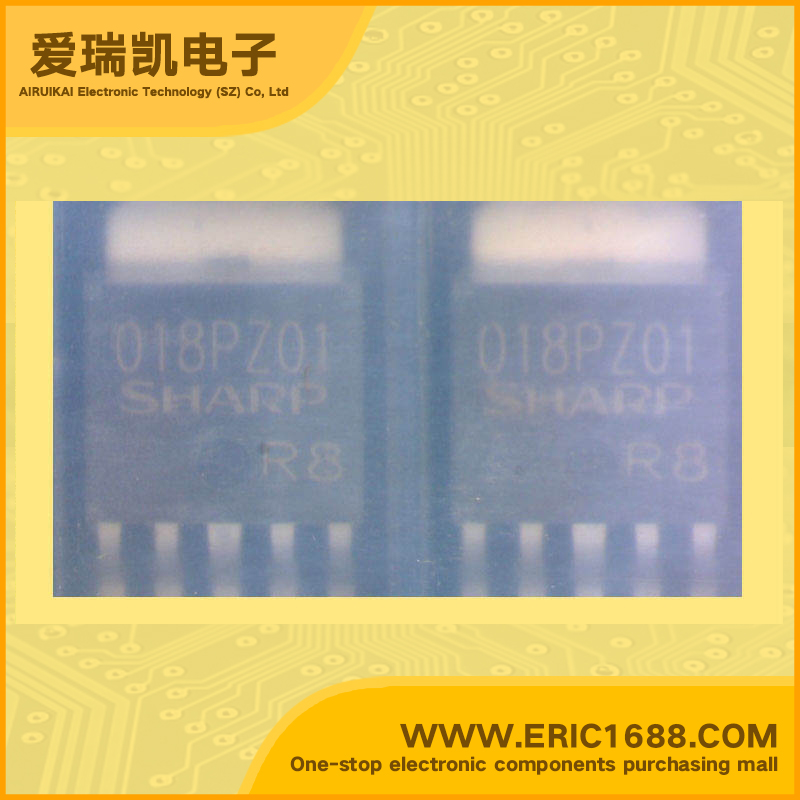

PQ018PZ01ZP LDO电压调整器/稳压电源IC 1.8V 200mV/0.2V 带使能脚EN/CE TO-252-5 marking/标记 018PZ01 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input10V
输出电压VOUTVoltage - Output1.8V
输出电流IoCurrent - Output500mA/0.5A
最大压降VDOVoltage - Dropout200mV/0.2V
带使能脚EN/CE(ON/OFF功能)With Enable Pin有 Yes
最大耗散功率PdPower dissipation8W
Description & ApplicationsCompact Surface Mount type Low Power-Loss Voltage Regulators;•Low voltage operation (Minimum operating voltage: 2.35V) 2.5V input → available 1.5 to 1.8V •Low dissipation current Dissipation current at no load: MAX. 2mA Output OFF-state dissipation current: MAX. 5μA •.Built-in overcurrent protection and overheat protection functions •.RoHS directive compliant •.Peripheral equipment of personal computers
描述与应用紧凑型表面贴装型 低功率损耗电压调节器;•低电压工作(最小工作电压:2.35V)    2.5V输入→1.5到1.8V •低功耗电流    消耗电流在无负载:MAX。 2毫安    输出关断状态消耗电流:最大。 5μA •内置过电流保护和过热保护    功能 •符合RoHS指令。 •个人电脑周边设备。
