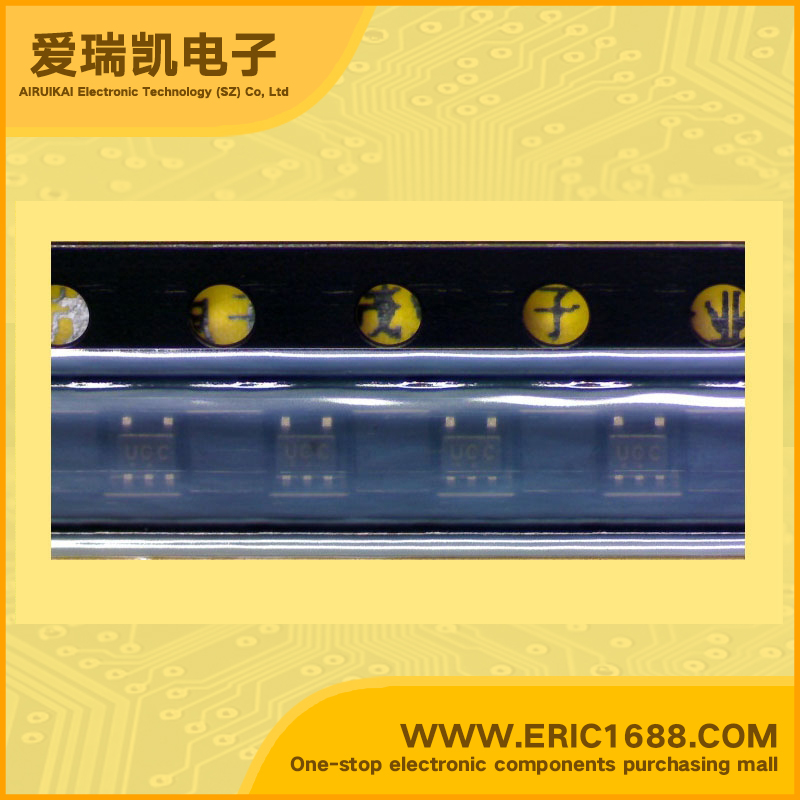

集成电路IC 与门 NL17SV08XV5T2 SOT-553 marking/标记 UCC
| 逻辑类型Logic Type | 与门 AND Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 0.9V~3.6V |
| 静态电流IqCurrent - Quiescent (Max) | 0.9uA |
| 输出高，低电平电流Current - Output High, Low | -24mA，24mA |
| 低逻辑电平Logic Level - Low | 0.7V~0.8V |
| 高逻辑电平Logic Level - High | 1.6V~2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 2.3ns @ 2.7V~3.6V，30pF |
| Description & Applications | Features Single 2−Input AND Gate Extremely High Speed: tPD = 1.0 ns (Typ) @ VCC = 3.3 V Designed for 0.9 to 3.3 V Operation Overvoltage Tolerance (OVT)* Input Pins Permit Logic Translation Balanced ±24 mA Output Drive @ 3.3 V Near Zero Static Supply Current Ultra−Tiny SOT−553 5 Pin Package Only 1.6 x 1.6 x 0.6 mm All Devices in Package SOT−553 are Inherently Pb−Free |
| 描述与应用 | 特性 单路2输入与门 极高的速度：TPD =1.0 ns（典型值）@ VCC = 3.3 V 专为0.9至3.3 V的运行 过压容差（OVT）输入引脚允许逻辑转换 平衡±24 mA输出驱动@3.3 V 近零静态电源电流 超微型SOT-5535针包装只有1.6×1.6×0.6毫米 在所有设备封装SOT-553本身无铅 |
