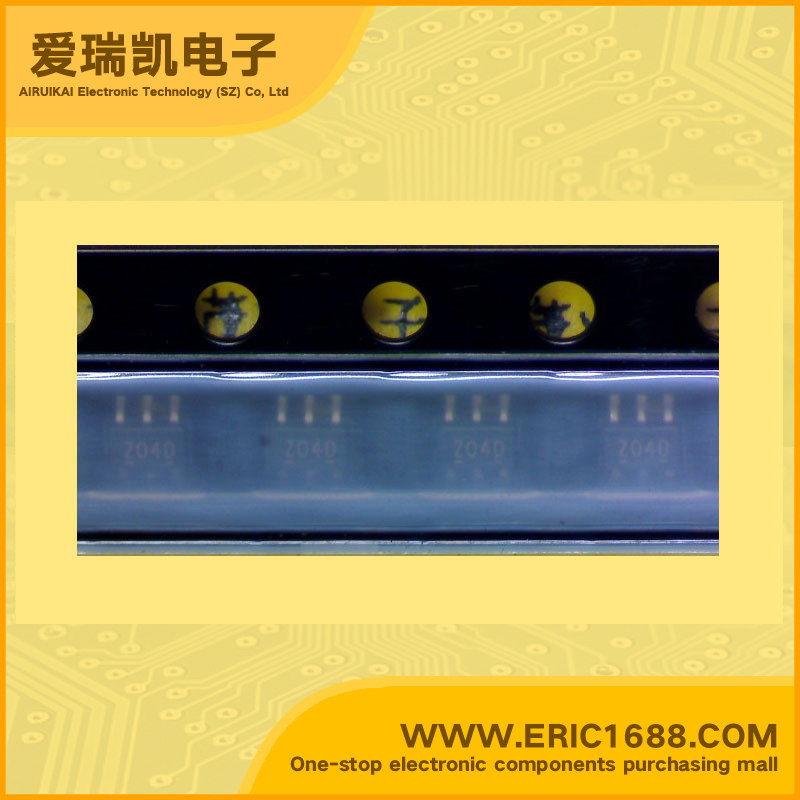

集成电路IC 反相器 NC7WZ04P6X SOT-363/SC70-6/SC88 marking/标记 Z04
| 逻辑类型Logic Type | 反相器 Inverter |
| 电路数Number of Circuits | 2 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -32mA，32mA |
| 低逻辑电平Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3.6ns @ 5V，50pF |
| Description & Applications | Features TinyLogic®UHS Dual Inverter Ultra-High Speed: tPD 2.3ns (Typical) into 50pF at 5V VCC High Output Drive: ±24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX when Operated at 3.3V VCC Power Down High Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SC70 6-Lead Package |
| 描述与应用 | 特性 TinyLogic®UHS双逆变 超高速的TPD2.3ns（典型值）到50PF在5V VCC 高输出驱动器的±24mA电流在3V VCC 宽广的VCC工作电压范围：1.65V到5.5V 操作时，匹配性能LCX在3.3V VCC 掉电高阻抗输入/输出 过电压耐受输入方便5V至3V转换 专有的噪声/ EMI抑制电路 超小型的MicroPak™软件包 节省空间的SC706引脚封装 |
