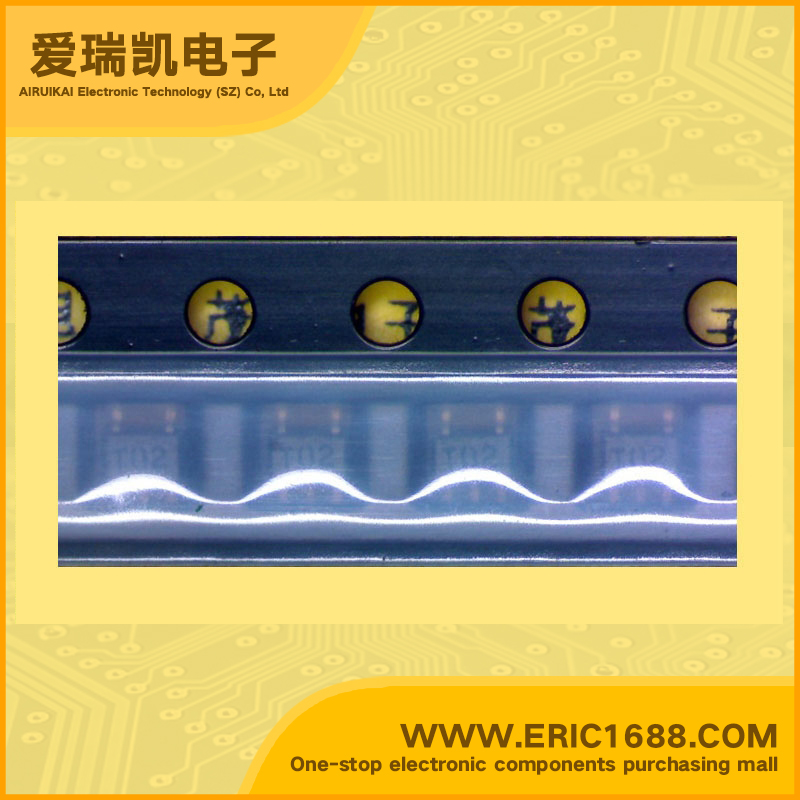

集成电路IC 或非门 NC7ST02P5X SOT-353/SC70-5/SC-88A marking/标记 T02

热销商品

产品描述
逻辑类型Logic Type或非门 NOR Gate
电路数Number of Circuits1
输入数Number of Inputs2
电源电压VccVoltage - Supply4.5V~5.5V
静态电流IqCurrent - Quiescent (Max)1uA
输出高,低电平电流Current - Output High, Low-2mA,2mA
低逻辑电平Logic Level - Low0.8V
高逻辑电平Logic Level - High2V
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL26ns @ 5.5V,50pF
Description & Applications2-Input NOR Gate ;Features TinyLogic HST 2-Input NOR Gate Space saving SOT23 or SC70 5-lead package High Speed; tPD <7 ns typ, VCC = 5V, CL= 15 pF Low Quiescent Power; ICC <1 µA typ, VCC = 5.5V Balanced Output Drive; 2 mA IOL, −2 mA IOH TTL-compatible inputs
描述与应用2输入或非门;特性 TinyLogicHST2输入或非门 节省空间的SOT23或SC705引线封装 高速; TPD<7 ns(典型值),VCC=5V,CL= 15 pF 静态功耗低; ICC<1μA(典型值),VCC=5.5V 平衡输出驱动2毫安毫安IOH IOL,-2 TTL兼容的输入
