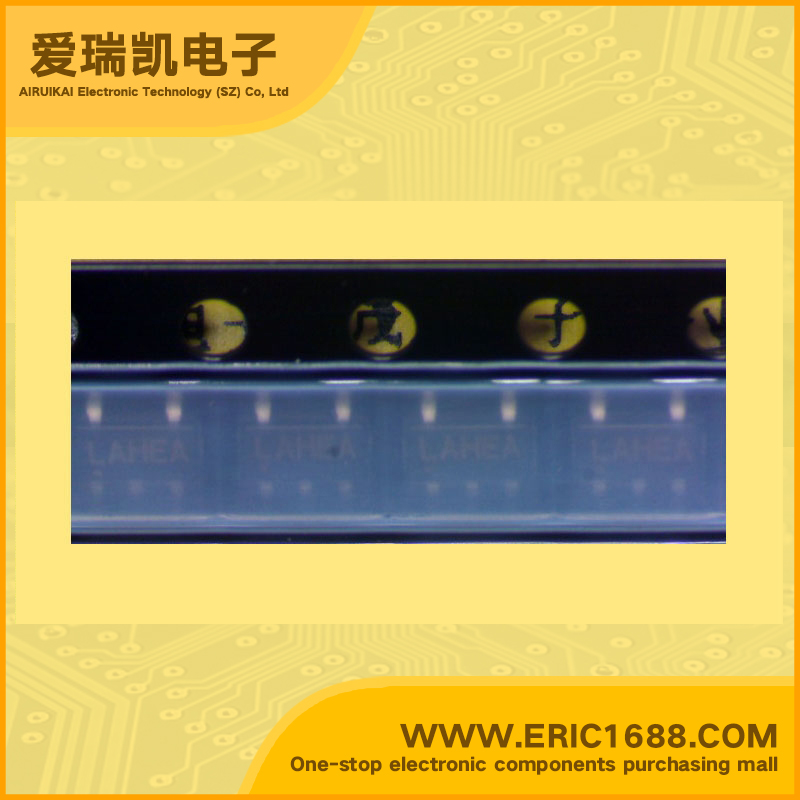

MC78LC18NTR 电压调整器/稳压电源IC 1.8V 35mV SOT-153/TSOP-5/SOT23-5 marking/标记 LAH 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 12V |
| 输出电压VOUTVoltage - Output | 1.8V |
| 输出电流IoCurrent - Output | 50mA |
| 最大压降VDOVoltage - Dropout | 35mV |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 140mW/0.14W |
| Description & Applications | Micropower Voltage Regulator ；• Low Quiescent Current of 1.1 A • Excellent Line and Load Regulation • Maximum Operating Voltage of 12 V • Low Output Voltage Option • High Accuracy Output Voltage of 2.5% • Industrial Temperature Range of −40°C to 85°C • Battery Powered Instruments • Hand−Held Instruments • Camcorders and Cameras |
| 描述与应用 | 微功耗电压 稳压器;•低静态电流为1.1 •出色的线路和负载调节 最大工作电压为12 V， •低输出电压选项 •高输出电压精度为2.5％ •工业温度范围为-40°C至85°C •电池供电的仪器 •手持式仪表 •摄像机和照相机 |
| 规格书PDF |
