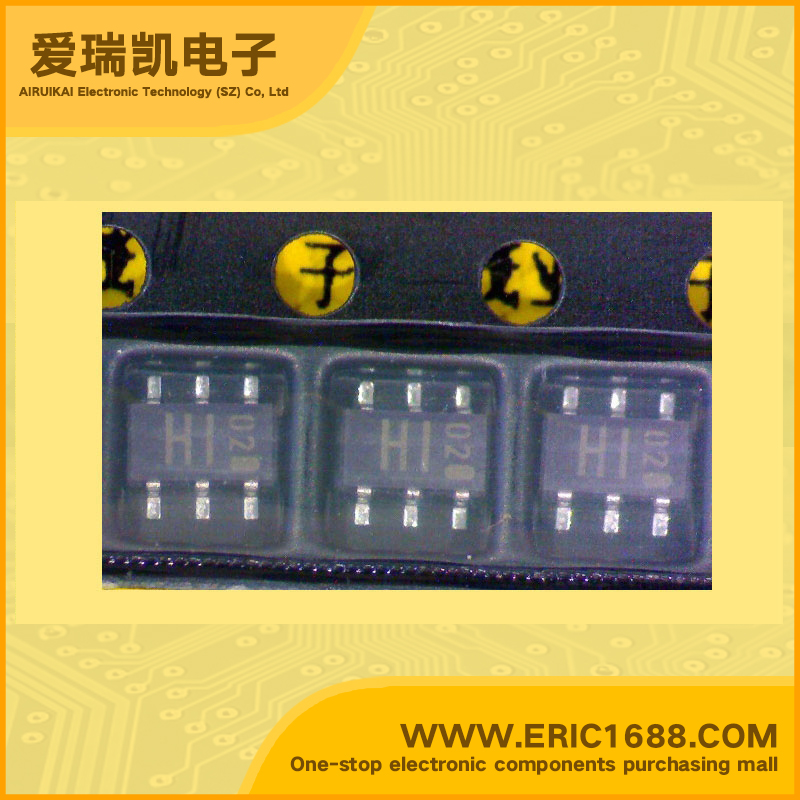

IMH1A NPN+NPN复合带阻尼三极管 50V 30mA 300mW/0.3W SOT-163/SMT6/SC-74 标记H1 开关电路 逆变器 接口电路 驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 30mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 22KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 22KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 22KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 22KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 300mW/0.3W |
| Description & Applications | Features •NPN 100mA 50V Complex Digital Transistors (Bias Resistor Built-in Transistors) •Built-In Biasing Resistors, R1 = R2= 22kW. •Two DTC124E chips in one package. •Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). •The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing lInner circuit of the input. They also have the advantage of completely eliminating parasitic effects. •Only the on/off conditions need to be set for operation, making the circuit design easy. •Lead Free/RoHS Compliant. |
| 描述与应用 | 特点 •NPN100毫安50V复杂的数字晶体管（内置偏置电阻晶体管） •内置偏置电阻R1= R2=22KW。 •两个DTC124E芯片在一个封装中。 •内置启用偏置电阻器的逆变器电路的配置，而无需连接外部输入电阻（见内部电路）。 •完全隔离允许负偏置lInner，电路的输入偏置电阻组成的薄膜电阻。他们也有优势，完全消除了寄生效应。 •只有开/关条件需要设置操作，使电路设计容易。 •无铅/ RoHS标准。 |
