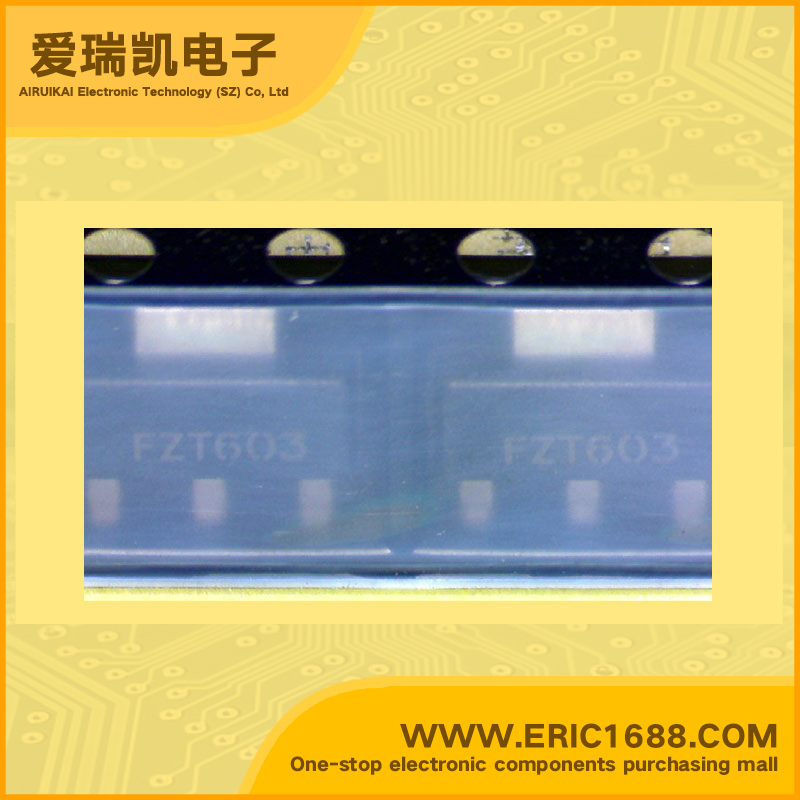

达林顿三极管 FZT603TA NPN 2A 80V SOT-223 markign/标记FZT603 开关 功率放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-EmitterVoltage(VCEO) | 80V |
| 集电极连续输出电流ICCollector Current(IC) | 2A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100000 @ 5V,0.1A |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | 1.13V |
| 耗散功率PcPower Dissipation | 2W |
| Description & Applications | • 2A continuous current • Useful hFE up to 6A • Fast Switching |
| 描述与应用 | •2A连续电流 •有用HFE高达6A •快速开关 |
| 规格书PDF |
