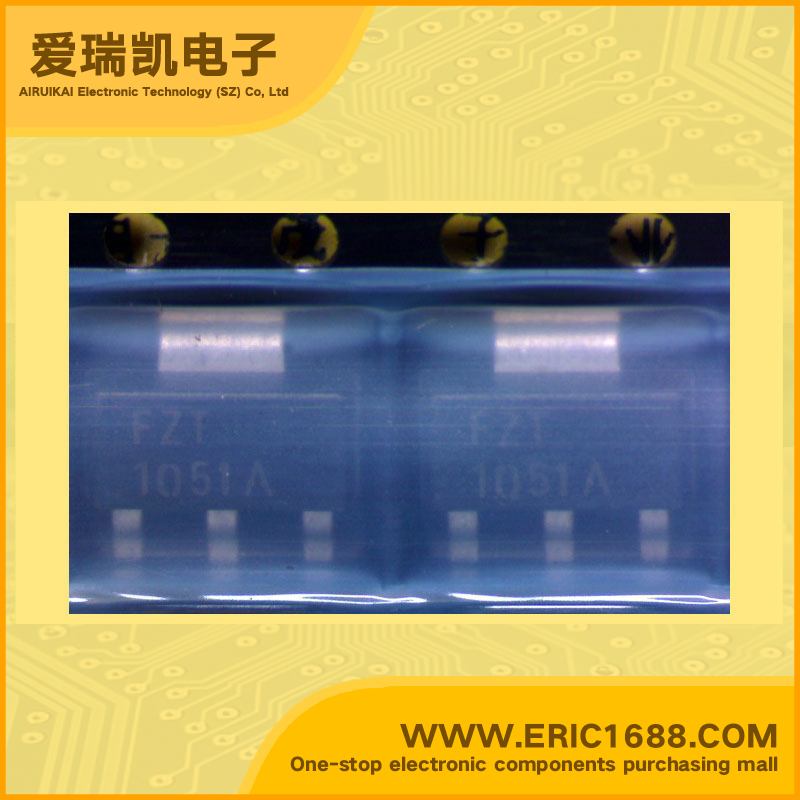

FZT1051A NPN三极管 150V 5A 155MHz 270~1200 340mV/0.34V SOT-223 marking/标记 1051A 中功率高增益晶体管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 150V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 5A |
| 截止频率fTTranstion Frequency(fT) | 155MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 270~1200 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 340mV/0.34V |
| 耗散功率PcPower Dissipation | 2.5W |
| Description & Applications | SOT223 NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR 5 Amp Continuous Current 20 Amp Pulse Current Low Saturation Voltage High Gain Extremely Low Equivalent On-resistance |
| 描述与应用 | SOT223 NPN硅平面中功率高增益晶体管 5安培连续电流 20安培脉冲电流 低饱和电压 高增益 极低的等效导通电阻 |
| 规格书PDF |
