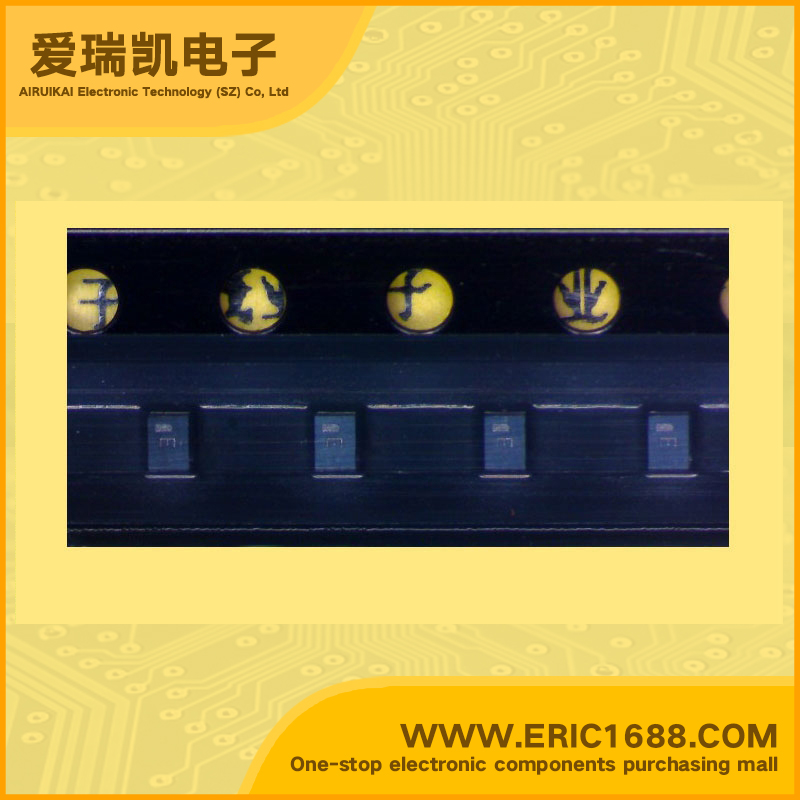

CSPESD304 瞬态抑制二极管TVS/ESD csp-5 标记E
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | |
| 反向击穿电压VBRBreakdown Voltage | |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | Features • Four channels of ESD protection • +15kV ESD protection on each channel (IEC 61000-4-2 Level 4, contact discharge) • +30kV ESD protection on each channel (HBM) • 5-bump, 0.950mm X 1.410mm footprint Chip Scale Package (CSP) • ESD protection for sensitive electronic equipment • I/O port and keypad and button circuitry protection for portable devices • used for EMI filtering when combined with external series resistance • digital devices |
| 描述与应用 | 特点 •四通道ESD保护 •+15 kV的ESD保护每个通道（IEC61000-4-2第4级，接触放电） •+30 kV的ESD（HBM）保护每个通道 •5磕碰，0.950毫米X1.410毫米的足迹芯片级封装（CSP） •ESD保护敏感的电子设备 •I / O端口和键盘和按钮用于便携设备的电路保护 •用于EMI滤波时，结合外部串联电阻 •数字设备 |
| 规格书PDF |
