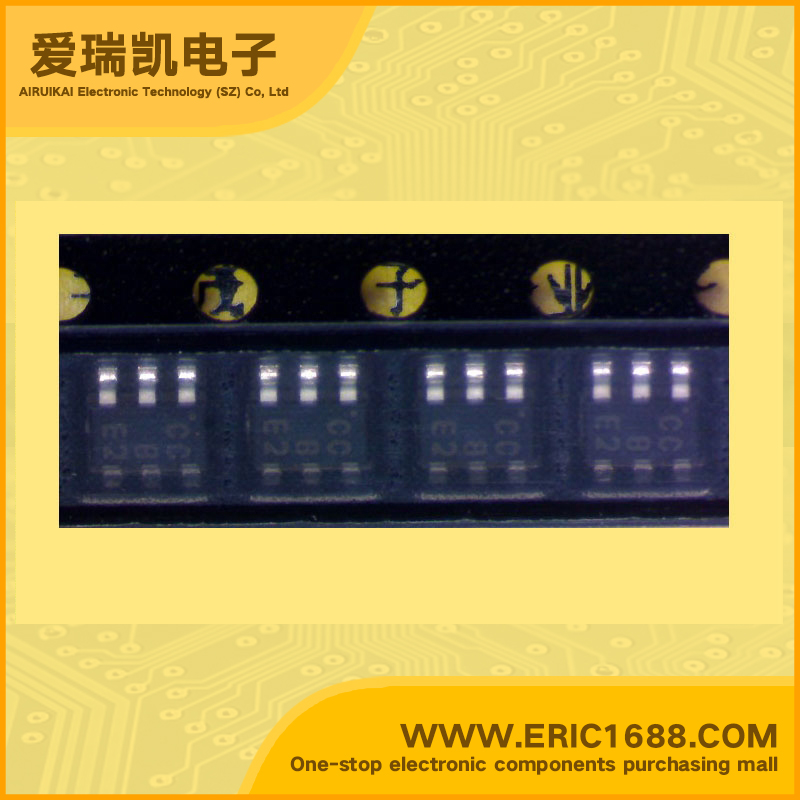

CPH6203 PNP+NPN复合三极管 60V 2A HEF=200~400 SOT-163/CPH6 标记CC 用于开关/数字电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 2A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 150mV |
| 耗散功率Pc Power Dissipation | 1.3W |
| Description & Applications | Features • PNP/NPN Epitaxial Planar Silicon Transistors • High-Current Switching Applications Applications • DC/DC converter , relay drivers, lamp drivers, motor drivers,strobes. |
| 描述与应用 | 特点 •PNP/ NPN平面外延硅晶体管 •高电流开关应用 应用 •DC/ DC转换器，继电器驱动器，灯驱动器，电机驱动器，闪光灯。 |
| 规格书PDF |
