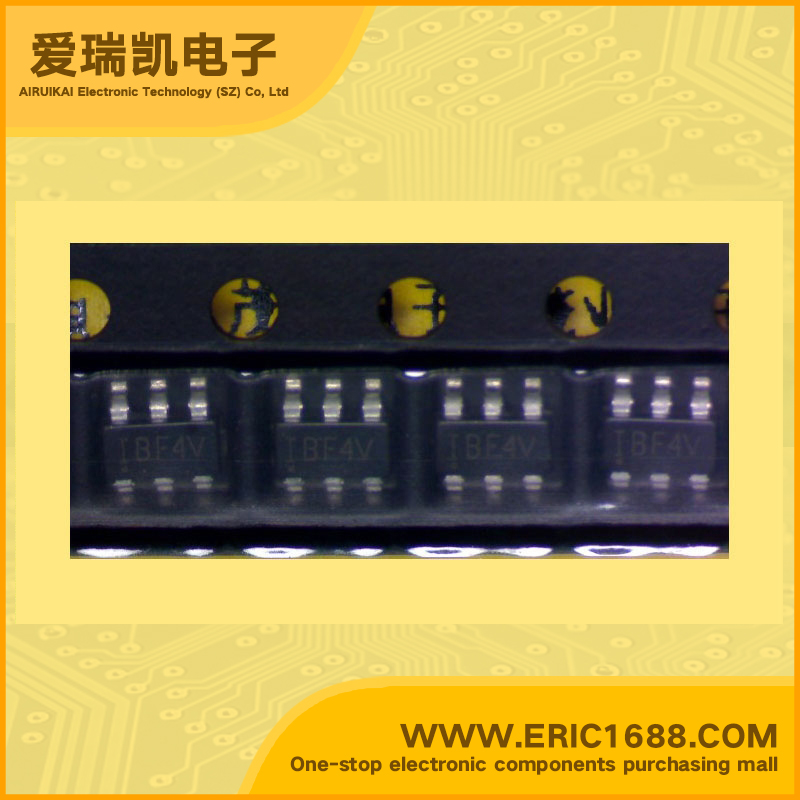

AAT3237BIGU-2.85-T1 LDO电压调整器/稳压电源IC 2.85V 400mV/0.4V 带使能脚EN/CE SOT-163/SOT23-6 marking/标记 IBF4V 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input6V
输出电压VOUTVoltage - Output2.85V
输出电流IoCurrent - Output300mA/0.3A
最大压降VDOVoltage - Dropout400mV/0.4V
带使能脚EN/CE(ON/OFF功能)With Enable Pin有 Yes
最大耗散功率PdPower dissipation667mW/0.667W
Description & Applications300mA MicroPower™ LDO with PowerOK ;•Low Dropout: 400mV at 300mA • Guaranteed 300mA Output • High Accuracy ±1.5% • 70µA Quiescent Current • High Power Supply Ripple Rejection • Power-OK (POK) Output • Fast Line and Load Transient Response • Short-Circuit Protection • Over-Temperature Protection • Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors • Shutdown Mode for Longer Battery Life • Low Temperature Coefficient • 13 Factory-Programmed Output Voltages • SOT23 6-Pin or SC70JW 8-Pin Package • Cellular Phones • Desktop Computers • Digital Cameras • Notebook Computers • Personal Portable Electronics • Portable Communication Devices
描述与应用300mA的微功率LDO与PowerOK;•低压差:400mV的在300mA •保证300mA输出 •高精度±1.5% •70μA静态电流 •高电源纹波抑制 •电源就绪(POK)输出 •快速电压和负载瞬态响应 •短路保护 •过温保护 •使用低等效串联电阻 (ESR)陶瓷电容器 •关断模式,更长的电池寿命 •低温度系数 •13工厂编程输出电压 •SOT236引脚SC70JW8引脚封装 •蜂窝电话 •台式电脑 •数码相机 •笔记本电脑 •个人便携式电子产品 •便携式通信设备
规格书PDF
