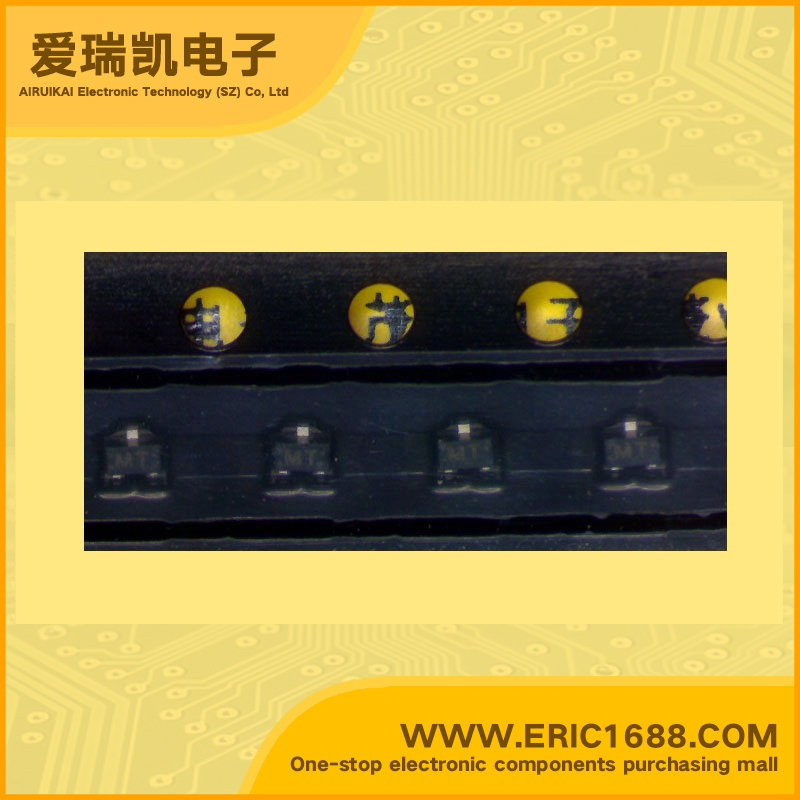

2SC5317FT NPN三极管 8V 20mA >9GHz 50~250 SOT-623/TESM marking/标记 MT VHL?UFL波段低噪声放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 8V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 5V |
| 集电极连续输出电流ICCollector Current(IC) | 20mA |
| 截止频率fTTranstion Frequency(fT) | >9GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~250 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 100mW/0.1W |
| Description & Applications | NPN EPITAXIAL SILICON planar TRANSISTOR vhl ~ufl band low noise amplify application * low noise figure * high gain |
| 描述与应用 | NPN外延硅平面晶体管 VHL〜UFL波段低噪声放大应用 *低噪声系数 *高增益 |
| 规格书PDF |
