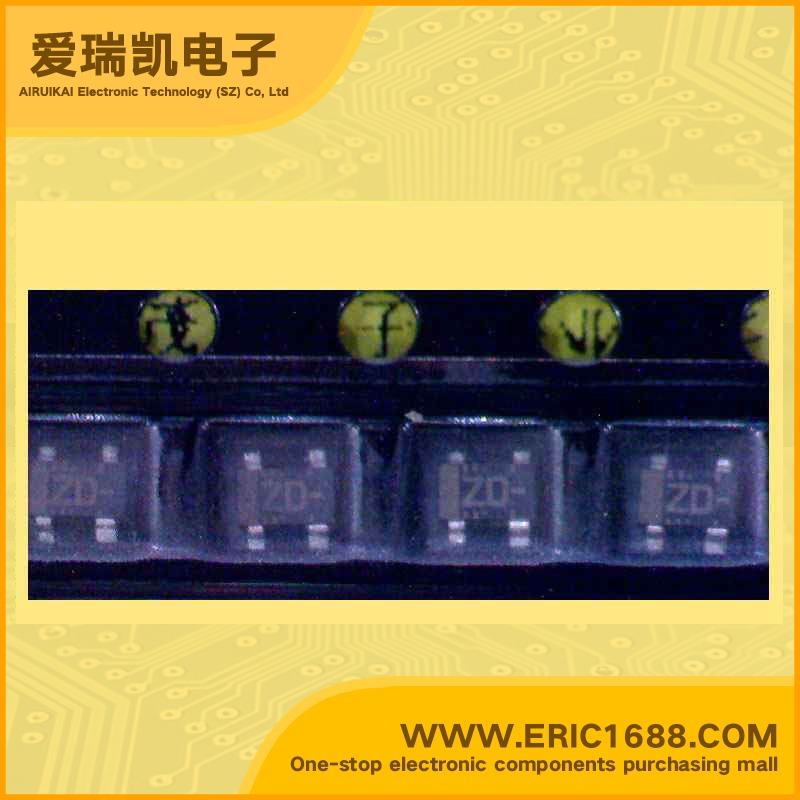

2SC5081 NPN三极管 15V 50mA 13.5GHz 50~160 SOT-343/CMPAK-4 marking/标记 ZD VHF/UHF宽频带放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 8V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 13.5GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~160 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 100mW/0.1W |
| Description & Applications | Silicon NPN Epitaxial Application VHF / UHF wide band amplifier Features • High gain bandwidth product fT = 13.5 GHz Typ • High gain, low noise figure PG = 18 dB Typ, NF = 1.1 dB Typ at f = 900 MHz |
| 描述与应用 | NPN硅外延 应用 VHF/ UHF宽频带放大器 特点 •高增益带宽积 FT =13.5 GHz的典型 •高增益，低噪声系数 PG=18 dB（典型值），NF= 1.1 dB（典型值）在f=900兆赫 |
| 规格书PDF |
