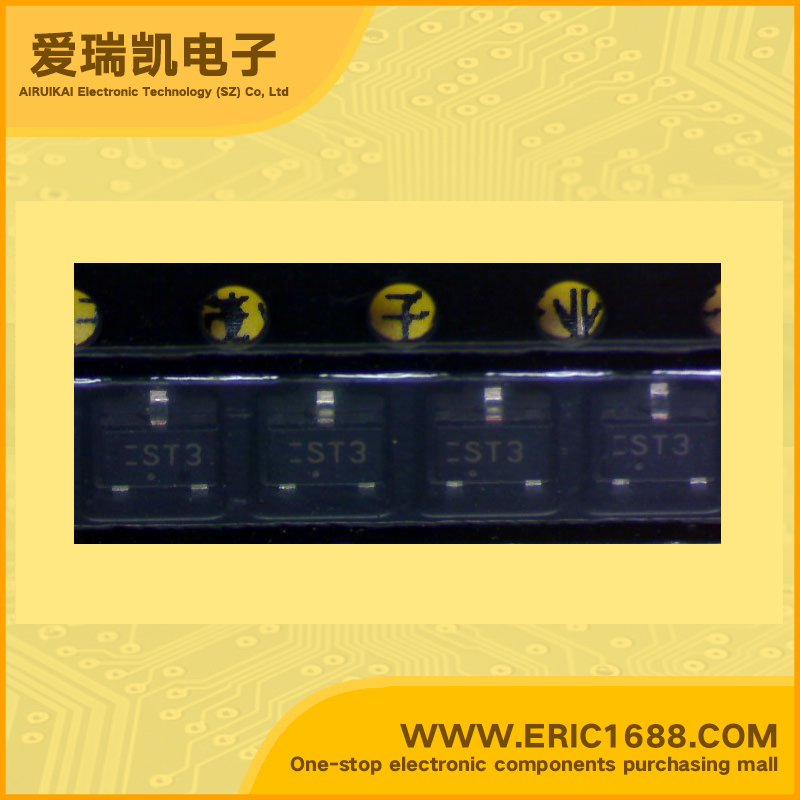

2SC4453-3 NPN三极管 40V 200mA/0.2A 750MHz 70~140 130mV/0.13V SOT-23/SC-59 marking/标记 ST3 高速开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 200mA/0.2A |
| 截止频率fTTranstion Frequency(fT) | 750MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 70~140 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 130mV/0.13V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | NPN epitaxial planer Silicon transistor High-Speed Switching Applications Fast switching speed Low collector saturation voltage High gain-bandwidth product Small collector capaity Very Small-sized package peimitting the 2SC4453-applied sets to be made samll and slim |
| 描述与应用 | NPN外延刨床硅的晶体管 高速开关应用 开关速度快 低集电极饱和电压 高增益带宽产品 集电极容量小 非常小的封装允许2SC4453的应用设置制得微小和轻薄 |
| 规格书PDF |
