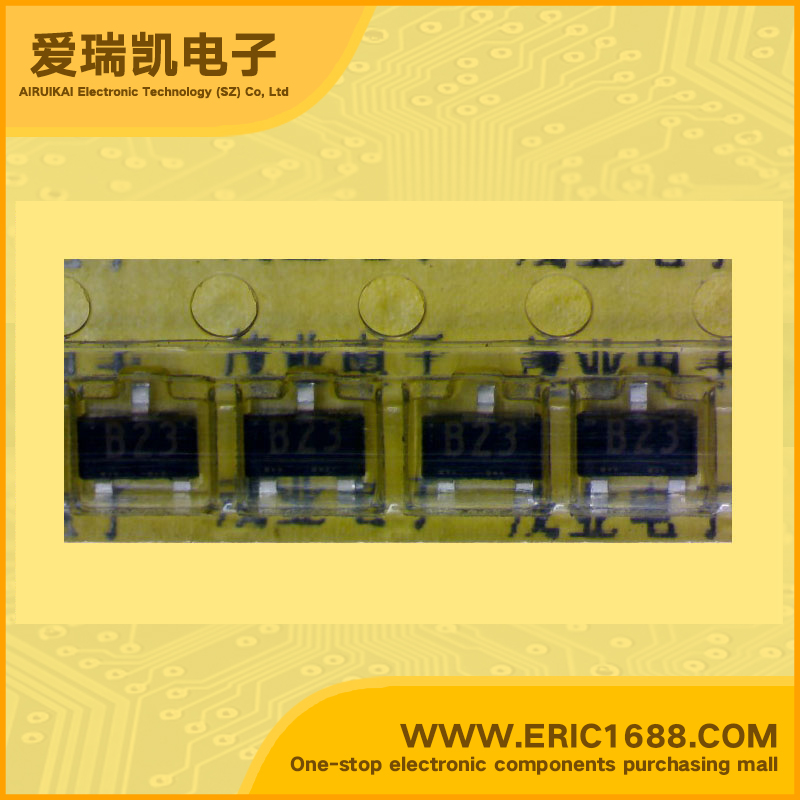

2SC3734 NPN三极管 60V 200mA/0.2A 510MHz 100~200 300mV/0.3V SOT-23/SC-59 marking/标记 B23 高频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 200mA/0.2A |
| 截止频率fTTranstion Frequency(fT) | 510MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon Epitaxial Transistors Applications High frequency amplifier Features High speed Complementary to 2SA1461 |
| 描述与应用 | NPN硅外延晶体管 应用 高频放大器 特点 高速 互补2SA1461 |
| 规格书PDF |
