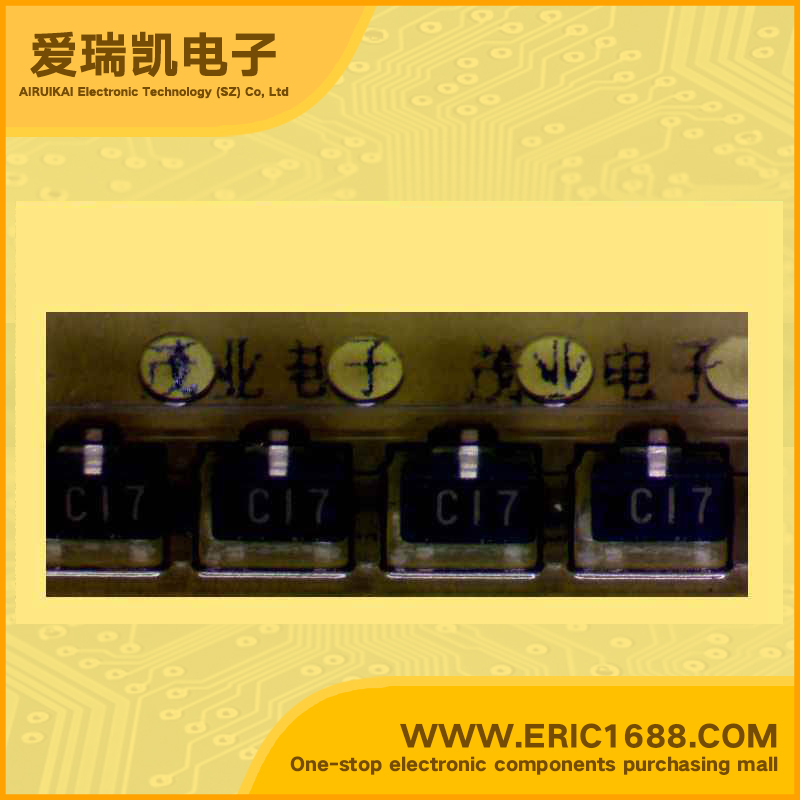

2SA811A PNP三极管 -120V -50mA 90MHz 300~600 -300mV/-0.3V SOT-23/SC-59 marking/标记 C17 音频频率高增益放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -120V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | -120V |
| 集电极连续输出电流ICCollector Current(IC) | -50mA |
| 截止频率fTTranstion Frequency(fT) | 90MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 300~600 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 200mW/0.2W |
| Description & Applications | audio frequency high gain amplifier PNP silicon epitaxial transistor mini mold PNP Silicon epitaxial planar type Audio frequency High gain amplifier Features High DC Current Gain |
| 描述与应用 | 音频频率高增益放大器PNP硅外延晶体管小型模具 PNP硅外延平面型 音频频率高增益放大器 特点 高DC电流增益 |
