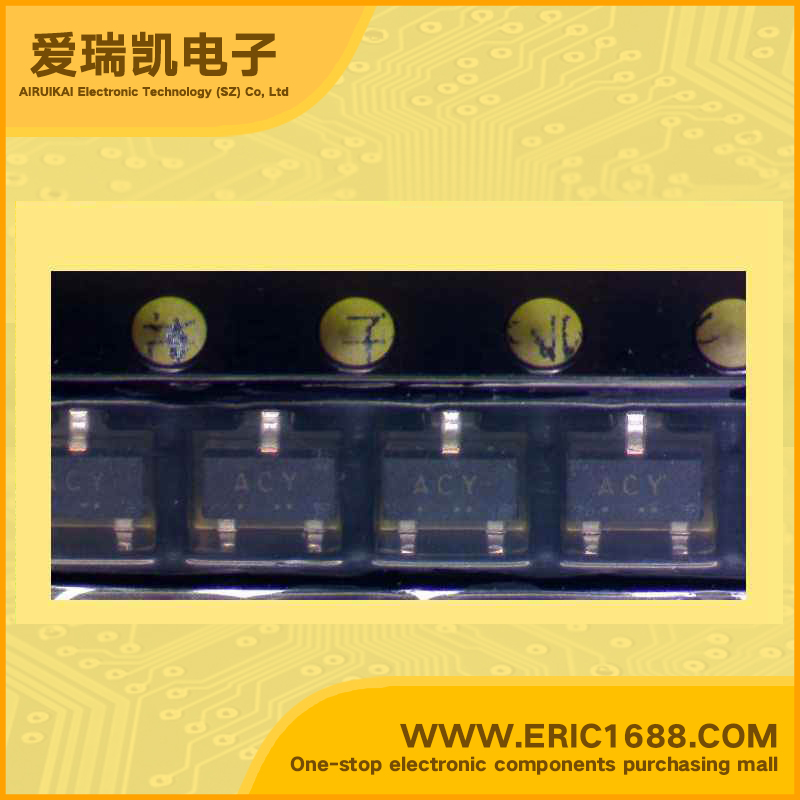

2SA1313 PNP三极管 -50V -500mA/-0.5A 200MHz 120~240 -100mV/-0.1V SOT-23/SC-59 marking/标记 ACY 音频/高频/驱动放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -100mV/-0.1V |
| 耗散功率PcPoWer Dissipation | 200mW/0.2W |
| Description & Applications | silicon PNP epitaxial type audio frequency low noise amplifier application； high voltage； driver stage amplifier application； complementary to 2SC3325 |
| 描述与应用 | 硅PNP外延型 音频高频低噪声放大器的应用; 高电压; 驱动级放大器的应用; 2SC3325互补 |
