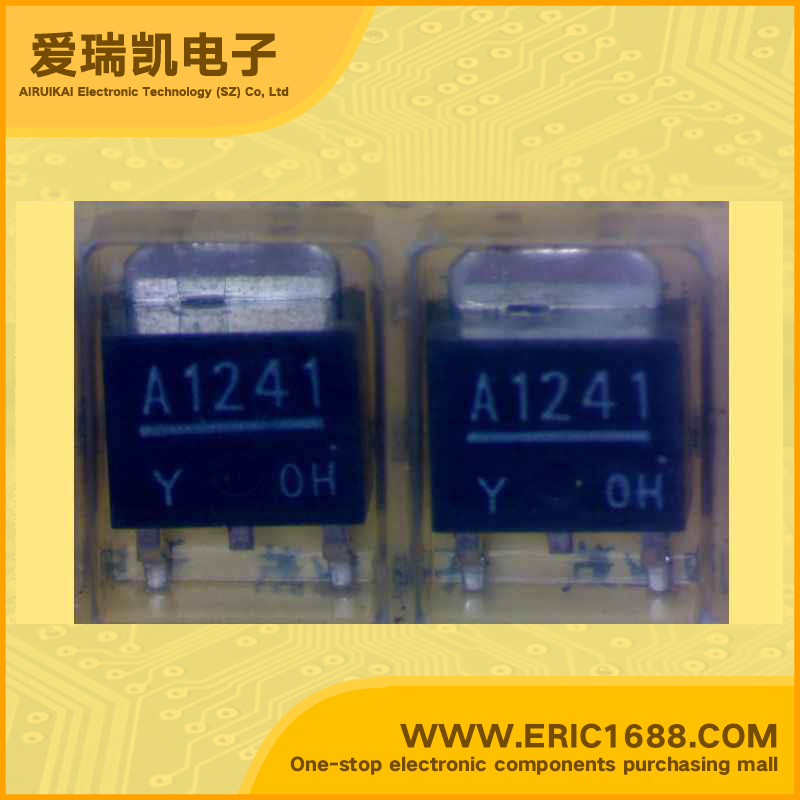

2SA1241-Y PNP三极管 -50V -2A 100MHz 120~240 -500mV/-0.5V TO-252/DPAK marking/标记 A1241 功率放大器/开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | -2A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | Power Amplifier Applications Power Switching Applications • Low saturation voltage: VCE (sat) = −0.5 V (max) (IC = −1 A) • Complementary to 2SC3076 |
| 描述与应用 | 功率放大器应用 电源开关应用 •低饱和电压VCE（sat）=-0.5 V（最大值）（IC=-1 A） •互补2SC3076 |
